NACHI 30206J Tapered Roller Bearings 30200 Series 30 x 62 x 17.25mm

Description

Tapered Roller Bearings

Tapered roller bearings are roller bearings with conical rollers.
These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

AIMS SKU A0105015

Brand NACHI

Model Number 30206J/NACHI

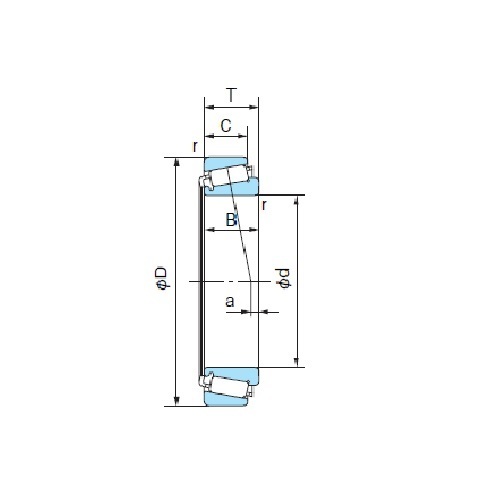

Bore Diameter x Outer Diameter x Width (mm) 30 x 62 x 17.25

Basic Dynamic Load Rating (n) 41500

Basic Static Load (N) 44800

Limiting Speed (rpm) Grease Lubrication 6500

Limiting Speed (rpm) Oil Lubrication 8700

Abutment And Fillet Dimension Da (min) Mm 35.5

Type Tapered Roller Bearings
System of Measurement Metric
Series 30203-32311
