Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0105014
  • Brand NACHI
  • Model Number 30205J/NACHI

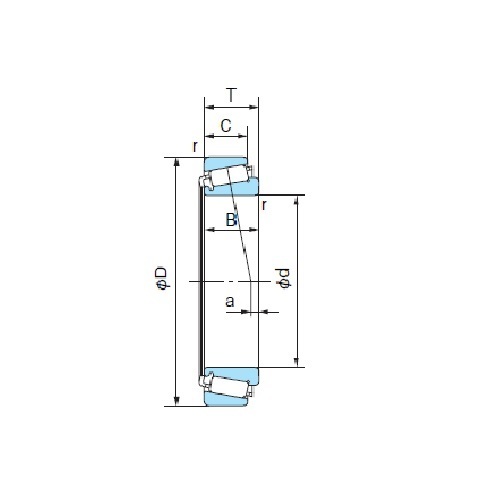

  • Bore Diameter x Outer Diameter x Width (mm) 25 x 52 x 16.25
  • Basic Dynamic Load Rating (n) 31500
  • Basic Static Load (N) 33700
  • Limiting Speed (rpm) Grease Lubrication 7500
  • Limiting Speed (rpm) Oil Lubrication 10000
  • Abutment And Fillet Dimension Da (min) Mm 30.5
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 30203-32311
SKU: A0105014

NACHI 30205J Tapered Roller Bearings 30200 Series 25 x 52 x 16.25mm

Tapered Roller Bearings Metric 30200 Series

$15.27
