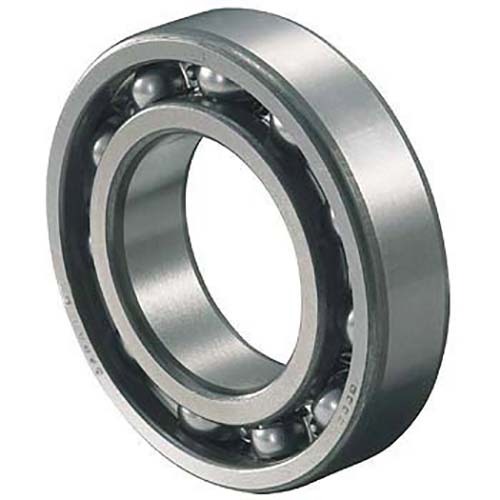

NACHI 6309C3 Deep-Groove Ball Bearings 6300 Series Open 45 x 100 x 25mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105137

Brand NACHI

Model Number 6309C3/NACHI

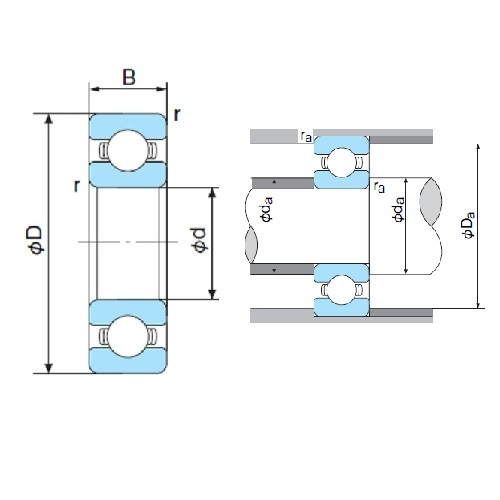

Bore Diameter x Outer Diameter x Width (mm) 45 x 100 x 25mm

R (min) 1.5

Basic Dynamic Load Rating (n) 53000

Basic Static Load (N) 32000

Limiting Speed (rpm) Grease Lubrication 7000

Limiting Speed (rpm) Oil Lubrication 8200

Abutment And Fillet Dimension Da (min) Mm 54

Abutment And Fillet Dimension Da (max) Mm 91

Abutment And Fillet Dimension Ra (max) Mm 1.5

Width (b) mm 25
