Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106425

Brand NACHI

Model Number 6306-2NSE9/NACHI

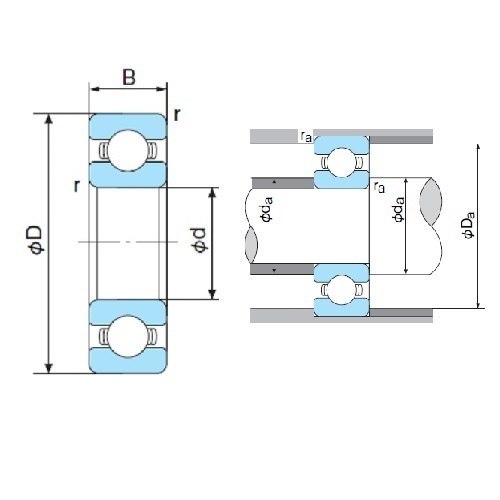

Bore Diameter x Outer Diameter x Width (mm) 30 x 72 x 19mm

R (min) 1.1

Basic Dynamic Load Rating (n) 26700

Basic Static Load (N) 15000

Limiting Speed (rpm) Grease Lubrication 6700

Limiting Speed (rpm) Oil Lubrication 12000

Width (b) mm 19

Type Deep-Groove Ball Bearings
System of Measurement Metric

Browse other products under

Deep Groove Bearings

Browse other products by

NACHI

"I have used NACHI bearings in a number of machine and power tool refurbs and repairs over the years and I am always happy with the result. In terms of providing a good quality standard grade ball bearing NACHI is my go-to product. Plus, for a variety of reasons, I tend to avoid buying bearings made in China. My last set of NACHI bearings were manufactured in Thailand. Great value for money."

- John

Great service

"Ordered Bearings online fast dispatch Excellent quality bearings worked a treat on my drill press highly recommend Nachi bearings"

- Carmine

Write a product review!

Help other AIMS Industrial Supplies users shop smarter by writing reviews for products you have purchased.

Write a product review

Description

Specifications

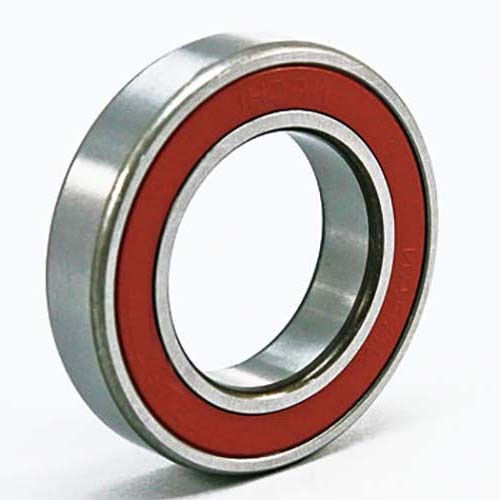

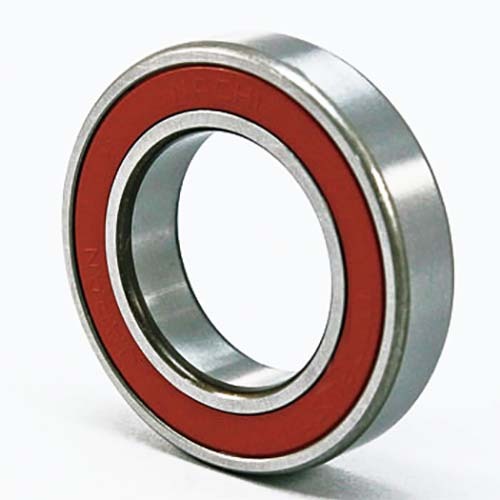

NACHI 6306-2NSE9 Deep-Groove Ball Bearings 6300 Series 2RS Rubber Seals 30x 72x 19mm
