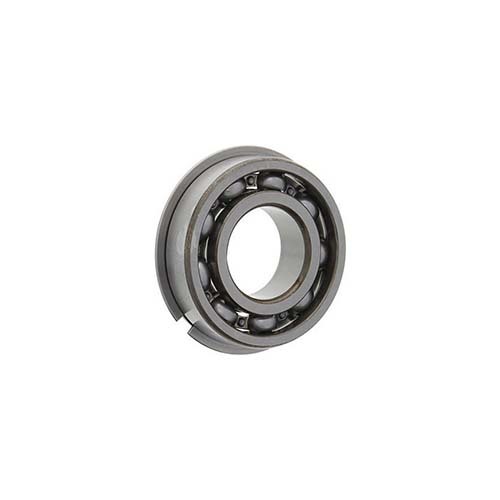

NACHI 63 Deep-Groove Ball Bearings 62/22-63/32 Series and Specials 32 x 75 x 20mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105252

Brand NACHI

Model Number 63/32NRC3/NACHI

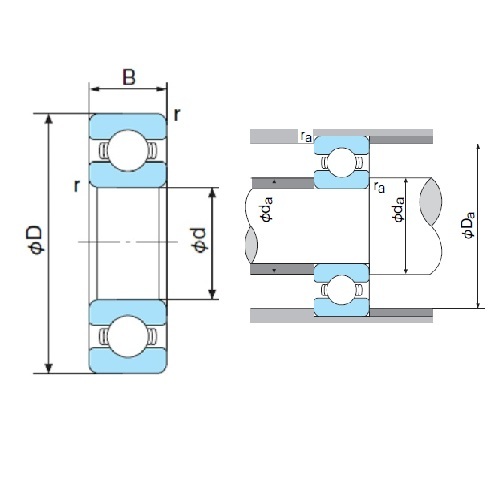

Bore Diameter x Outer Diameter x Width (mm) 32 x 75 x 20

R (min) 1.1

Basic Dynamic Load Rating (n) 30000

Basic Static Load (N) 16200

Limiting Speed (rpm) Grease Lubrication 6500

Limiting Speed (rpm) Oil Lubrication 11000

Type Deep-Groove Ball Bearings
System of Measurement Metric
Series 6200-6300
