Description



Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0106511
  • Brand NACHI
  • Model Number 6211-2NSENRC3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 55 x 100 x 21
  • R (min) 1.5
  • Ra (max) 1.5
  • Factor Fo 14.4
  • Bore Diameter d (mm) 55
  • Width B (mm) 21
  • Da (min) 64
  • Da (max) 91
  • Basic Dynamic Load Rating Cr (n) 43500
  • Basic Static Load Rating Cor (n) 29300
  • Outer Diameter D (mm) 100
  • Type Deep-Groove Ball Bearings
  • System of Measurement Metric
  • Series 6000-6300
SKU: A0106511 On Sale

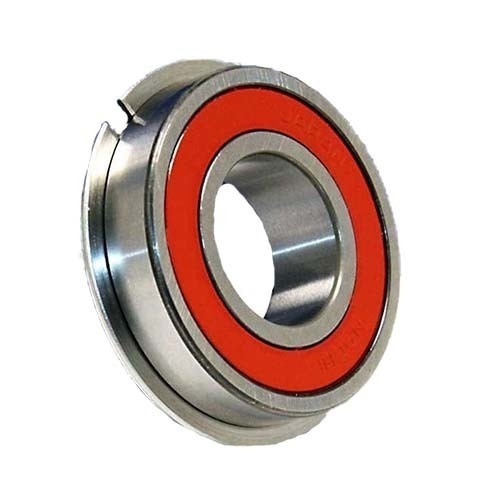

Nachi 6211-2NSENRC3 Deep-Groove Ball Bearings w/Snap Ring (C3) 55 x 100 x 21mm

Deep Groove Ball Bearings 2NSE Snap Ring and Groove (C3)

$42.14
$52.67
