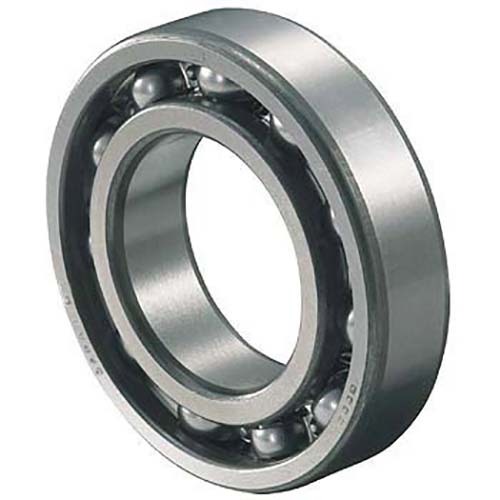

NACHI 6208C3 Deep-Groove Ball Bearings 6200 Series Open 40x 80x 18mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106497

Brand NACHI

Model Number 6208C3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 40 x 80 x 18mm

R (min) 1.1

Basic Dynamic Load Rating (n) 29100

Basic Static Load (N) 17900

Limiting Speed (rpm) Grease Lubrication 8700

Limiting Speed (rpm) Oil Lubrication 10000

Width (b) mm 18
