Description



Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0105286
  • Brand NACHI
  • Model Number 6010-2NSE9/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 50 x 80 x 16mm
  • R (min) 1
  • Basic Dynamic Load Rating (n) 21800
  • Basic Static Load (N) 16600
  • Limiting Speed (rpm) Grease Lubrication 5000
  • Limiting Speed (rpm) Oil Lubrication 10000

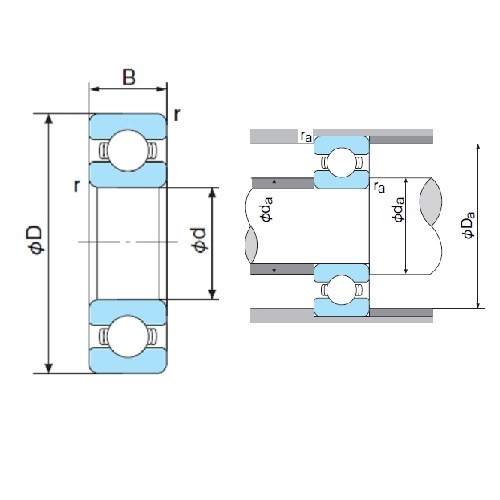

  • Abutment And Fillet Dimension Da (min) Mm 55
  • Abutment And Fillet Dimension Da (max) Mm 75
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Width (b) mm 16
  • Type Deep-Groove Ball Bearings
  • System of Measurement Metric
SKU: A0105286

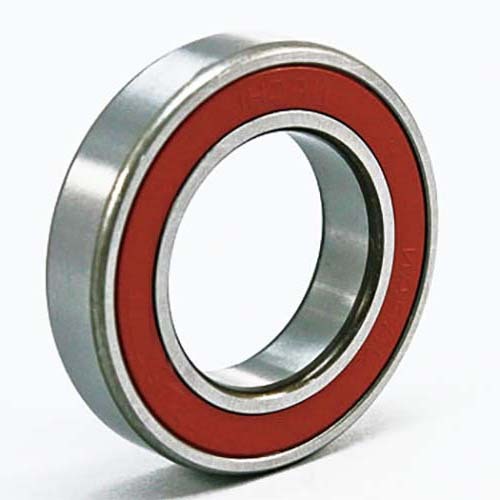

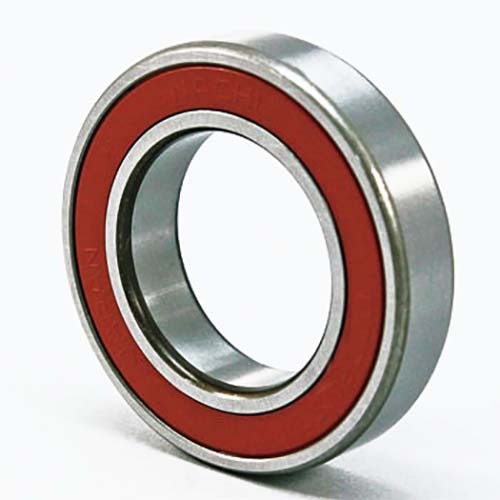

NACHI 6010-2NSE9 Deep-Groove Ball Bearings 6000 Series 2RS Rubber Seals 50 x 80 x 16mm

Deep-Groove Ball Bearings 6000 Series 2RS Rubber Seals

$23.67
5/5 based on 2 reviews.
See all reviews

Choose a different size/variant

Calculate Shipping

Resources

Browse other products under

Deep Groove Bearings

Browse other products by

NACHI

Reviews

NACHI a good investment

"I have used NACHI bearings in a number of machine and power tool refurbs and repairs over the years and I am always happy with the result. In terms of providing a good quality standard grade ball bearing NACHI is my go-to product. Plus, for a variety of reasons, I tend to avoid buying bearings made in China. My last set of NACHI bearings were manufactured in Thailand. Great value for money."

-

Great service

"Ordered Bearings online fast dispatch Excellent quality bearings worked a treat on my drill press highly recommend Nachi bearings"

-
