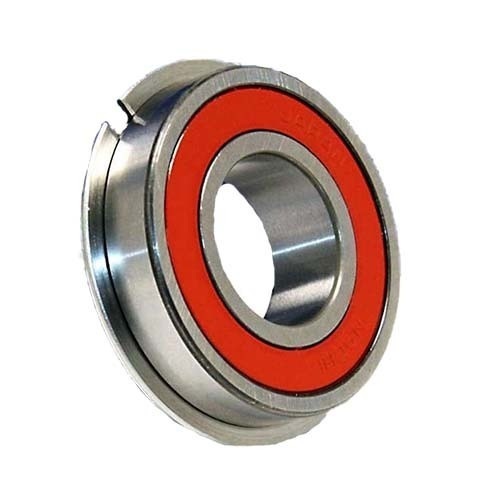

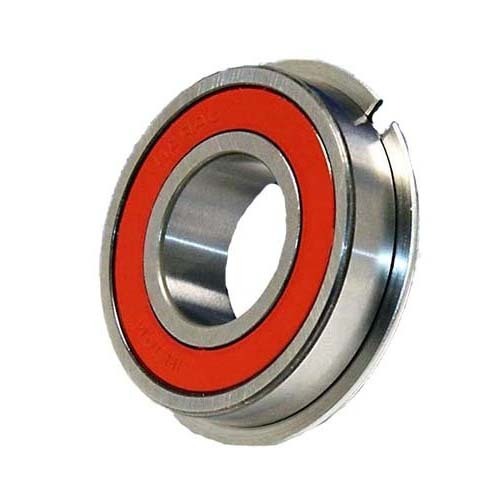

NACHI 6006-2NSENRC3 Deep-Groove Ball Bearings 6000 Series w/Snap Ring 30 x 55 x 13mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106559

Brand NACHI

Model Number 6006-2NSENRC3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 30 x 55 x 13

R (min) 1

Basic Dynamic Load Rating (n) 13200

Basic Static Load (N) 8300

Limiting Speed (rpm) Grease Lubrication 13000

Limiting Speed (rpm) Oil Lubrication 15000

Width (b) mm 13

Type Deep-Groove Ball Bearings
System of Measurement Metric
Series 6000-6300
