Description

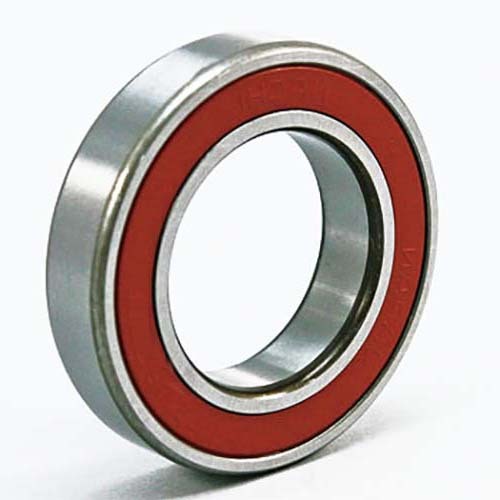

Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0106550
  • Brand NACHI
  • Model Number 6002-2NSE9C3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 15 x 32 x 9mm
  • R (min) 0.3
  • Basic Dynamic Load Rating (n) 5600
  • Basic Static Load (N) 2840
  • Limiting Speed (rpm) Grease Lubrication 15000
  • Limiting Speed (rpm) Oil Lubrication 28000
  • Width (b) mm 9
SKU: A0106550

NACHI 6002-2NSE9C3 Deep-Groove Ball Bearings 6000 Series 2RS Rubber Seals 15 x 32 x 9mm

Deep-Groove Ball Bearings 6000 Series 2RS Rubber Seals

$6.05
