Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105466
  • Brand NACHI
  • Model Number 5309/NACHI

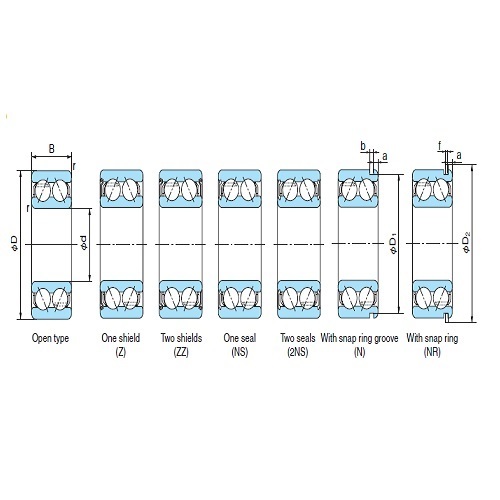

  • Bore Diameter x Outer Diameter x Width (mm) 45 x 100 x 39.7mm
  • R (min) 1.5
  • Basic Dynamic Load Rating (n) 76500
  • Limiting Speed (rpm) Grease Lubrication 5000
  • Limiting Speed (rpm) Oil Lubrication 6700

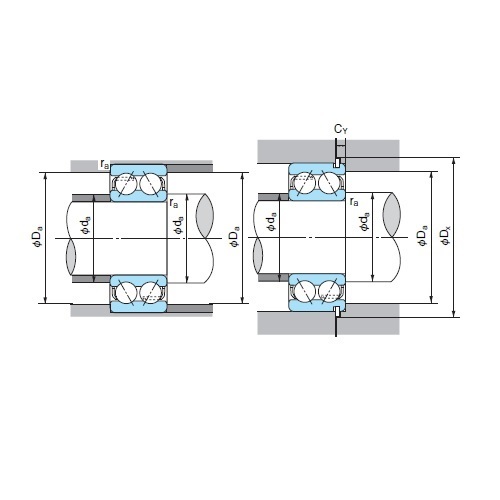

  • Abutment And Fillet Dimension Da (min) Mm 54
  • Abutment And Fillet Dimension Da (max) Mm 91
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Width (b) mm 39.7
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0105466

NACHI 5309 Angular Contact Ball Bearings 5200-5300 OPEN Series 45 x 100 x 39.7mm

Angular Contact Ball Bearings 5200-5300 OPEN Series

$124.38
