Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105463
  • Brand NACHI
  • Model Number 5307/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 35 x 80 x 34.9mm
  • R (min) 1.5
  • Basic Dynamic Load Rating (n) 52000
  • Limiting Speed (rpm) Grease Lubrication 6300
  • Limiting Speed (rpm) Oil Lubrication 8500
  • Abutment And Fillet Dimension Da (min) Mm 44
  • Abutment And Fillet Dimension Da (max) Mm 71
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Width (b) mm 34.9
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0105463

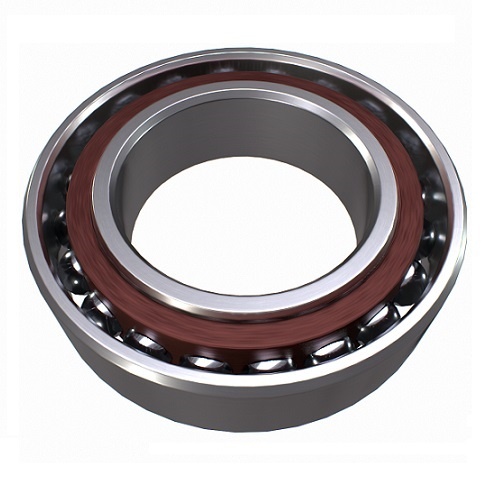

NACHI 5307 Angular Contact Ball Bearings 5200-5300 OPEN Series 35 x 80 x 34.9mm

Angular Contact Ball Bearings 5200-5300 OPEN Series

$84.90
