Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105462
  • Brand NACHI
  • Model Number 5306/NACHI

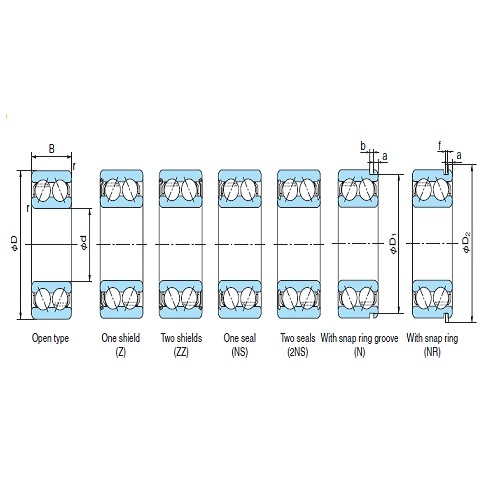

  • Bore Diameter x Outer Diameter x Width (mm) 30 x 72 x 30.2mm
  • R (min) 1.1
  • Basic Dynamic Load Rating (n) 41500
  • Limiting Speed (rpm) Grease Lubrication 7000
  • Limiting Speed (rpm) Oil Lubrication 9500

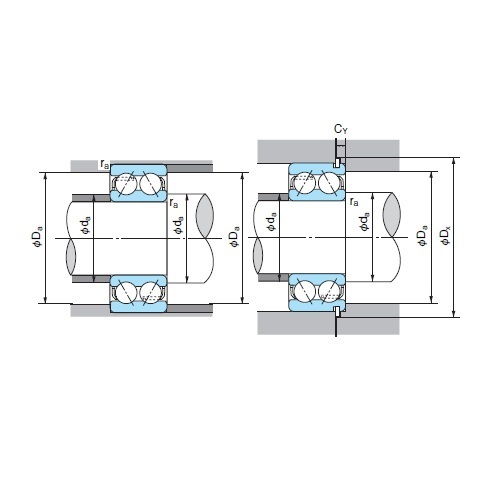

  • Abutment And Fillet Dimension Da (min) Mm 37
  • Abutment And Fillet Dimension Da (max) Mm 65
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Width (b) mm 30.2
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0105462

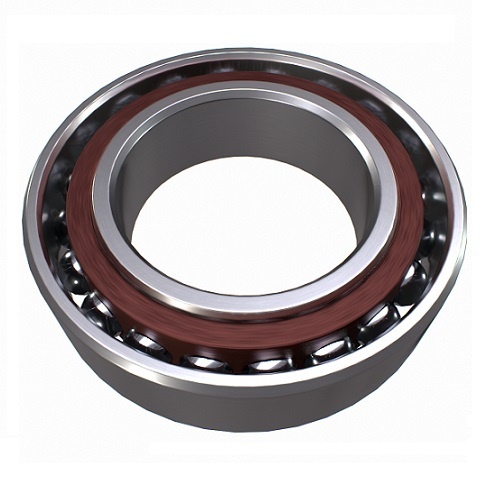

NACHI 5306 Angular Contact Ball Bearings 5200-5300 OPEN Series 30 x 72 x 30.2mm

Angular Contact Ball Bearings 5200-5300 OPEN Series

$60.35
