Description

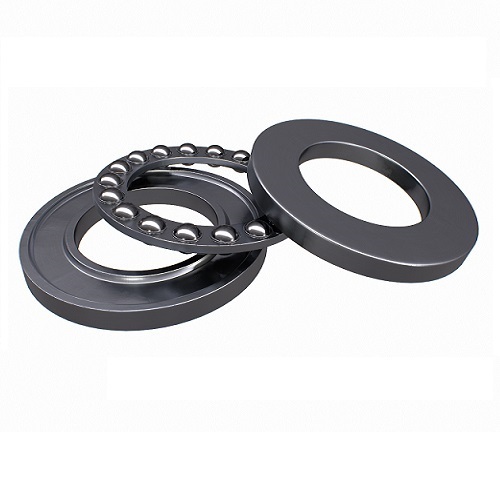

Thrust Ball Bearings

  • Three-part Assembly
  • Available in extra light, Light & Medium Series
  • Thrust Bearing is designed for unidirectional axial loads and not suitable for radial loads.
  • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Specifications

  • AIMS SKU A0104953
  • Brand NACHI
  • Model Number 51313/NACHI

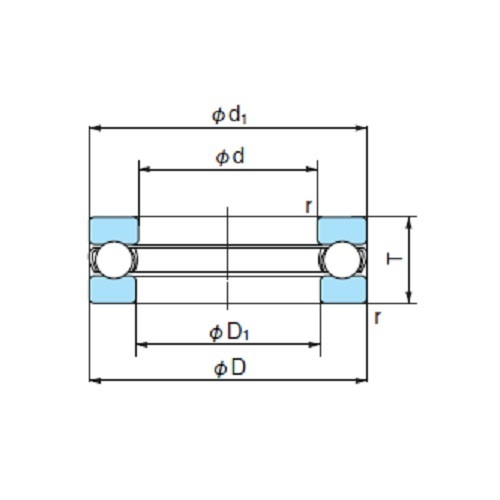

  • Bore Diameter x Outer Diameter x Width (mm) 65 x 115 x 36
  • R (min) 1.1
  • Basic Dynamic Load Rating (n) 127000
  • Basic Static Load (N) 287000
  • Limiting Speed (rpm) Grease Lubrication 1500
  • Limiting Speed (rpm) Oil Lubrication 2300
  • Dimension D1 (min) mm 67
  • Dimension D1 (max) mm 115
  • Type Spherical Roller Thrust Bearings
  • Series 51100-51400
SKU: A0104953

NACHI 51313 Thrust Ball Bearings 51300 Series 65(d) x 115(D) x 36mm(W)

Single-direction Thrust Ball Bearings 51300 Series

$156.22
