Description

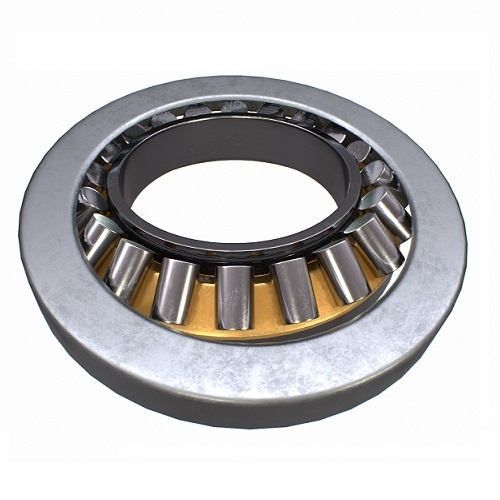

Spherical Roller Thrust Bearings

  • Spherical roller thrust bearings can sustain high loads at low-to-moderate speeds.
  • The raceway of housing washer of this bearing type is spherical with the center of the radius located on the bearing axis.

Specifications

  • AIMS SKU A0105029
  • Brand NACHI
  • Model Number 29414E/NACHI

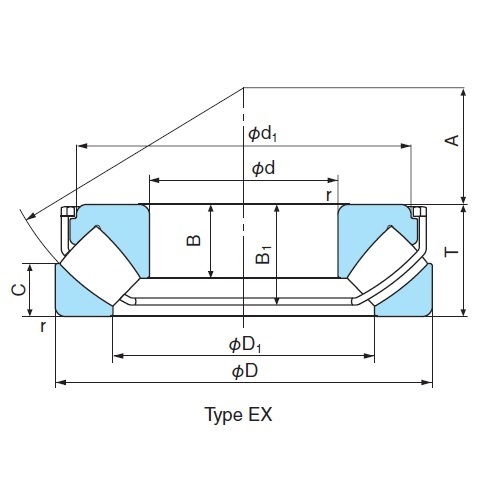

  • Bore Diameter x Outer Diameter x Width (mm) 70 x 150 x 48
  • R (min) 2
  • Basic Dynamic Load Rating (n) 375000
  • Basic Static Load (N) 1110000
  • Limiting Speed (rpm) Grease Lubrication ?
  • Limiting Speed (rpm) Oil Lubrication 2400

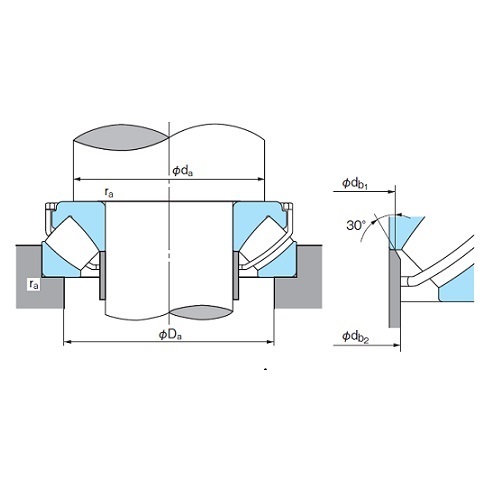

  • Abutment And Fillet Dimension Da (min) Mm 106
  • Abutment And Fillet Dimension Da (max) Mm 125
  • Abutment And Fillet Dimension Ra (max) Mm 2
  • Type Spherical Roller Thrust Bearings
SKU: A0105029 On Sale

NACHI 29414E Spherical Roller Thrust Bearings 70(d) x 150(D) x 48(W)mm

Spherical Roller Thrust Bearings

$627.16
$737.84
