Description

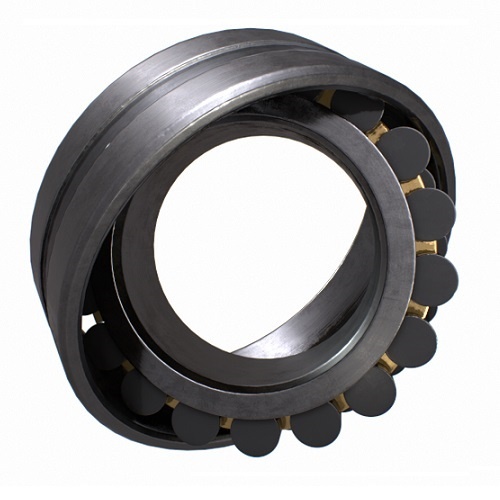

Spherical Roller Bearings

  • Spherical roller bearings are double row self-aligning bearings capable of carrying heavy radial loads combined with light-moderate thrust loads in either direction.
  • Spherical Roller, Double-Row Barrel Roller Bearing Self Aligning Extra Light, Light & Medium Series designed to accommodate radial loads, as well as axial loads in both directions.
  • Spherical roller bearings are extremely resistant to heavy impact loads and their self-aligning feature allows full capacity loading despite shaft bending and alignment errors of the shaft relative to the housing.

Specifications

  • AIMS SKU A0105033
  • Brand NACHI
  • Model Number 23224EXQW33C3/NACHI

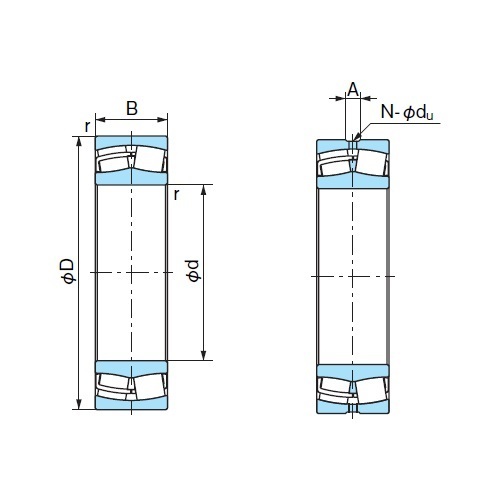

  • Bore Diameter x Outer Diameter x Width (mm) 120 x 215 x 76
  • R (min) 2.1
  • Basic Dynamic Load Rating (n) 860000
  • Basic Static Load (N) 956000
  • Limiting Speed (rpm) Grease Lubrication 2250
  • Limiting Speed (rpm) Oil Lubrication 3150

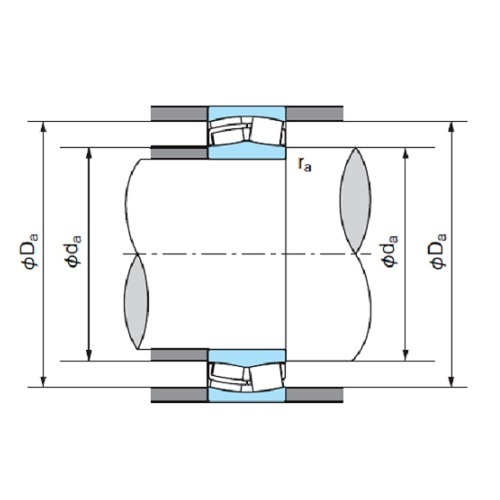

  • Abutment And Fillet Dimension Da (min) Mm 132
  • Abutment And Fillet Dimension Da (max) Mm 203
  • Abutment And Fillet Dimension Ra (max) Mm 2
  • Type Spherical Roller Bearings
  • System of Measurement Metric
  • Series 21300-23200
SKU: A0105033

NACHI 23224EXQW33C3 Spherical Roller Bearings 23200 Series 120 x 215 x 76mm

Spherical Roller Bearings 23200 Series

$670.34
