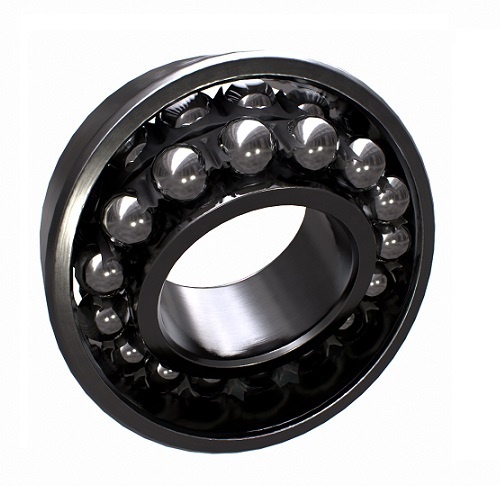

NACHI 1302 Self Aligning Ball Bearings 1200-2200 Series OPEN 15 x 42 x 13mm

Description

Self Aligning Ball Bearings

Self Aligning Ball bearings are suitable for long a shaft where accurate positioning of housing bores is difficult.
This type is often used in conjunction with pillow blocks. Cages are made from pressed steel or polyamide resin.
Wide light & medium series Double Row Ball Self Aligning Bearing accommodates static and dynamic misalignment.
This bearing should only be used in light axial load applications due to the small axial support of the rolling elements by the outer ring raceway.

Specifications

AIMS SKU A0105102

Brand NACHI

Model Number 1302/NACHI

Abutment And Fillet Dimension Da (min) Mm 20

Basic Static Load (N) 2300

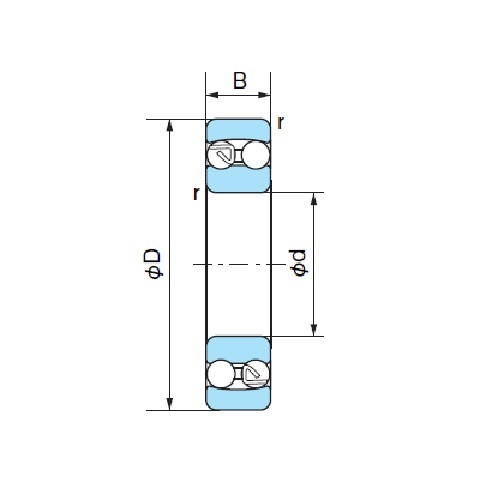

Bore Diameter x Outer Diameter x Width (mm) 15 x 42 x 13

Abutment And Fillet Dimension Ra (max) Mm 1

Limiting Speed (rpm) Oil Lubrication 20000

Basic Dynamic Load Rating (n) 9550

Abutment And Fillet Dimension Da (max) Mm 37

Limiting Speed (rpm) Grease Lubrication 16000

R (min) 1
