Specifications
- AIMS SKU A0104913
- Brand NACHI
- Model Number 0-8/NACHI

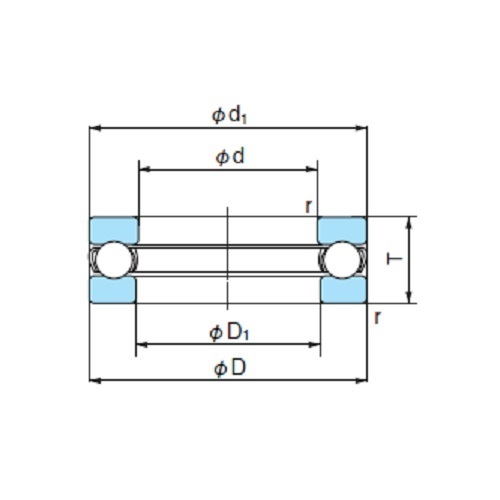

- Bore Diameter x Outer Diameter x Width (mm) 25.4 x 45.244 x 15.875
- R (min) 1.6
- Basic Dynamic Load Rating (n) 22500
- Basic Static Load (N) 41000
- Limiting Speed (rpm) Grease Lubrication 3700
- Limiting Speed (rpm) Oil Lubrication 5500
- Dimension D1 (min) mm 25.797
- Dimension D1 (max) mm 44.45

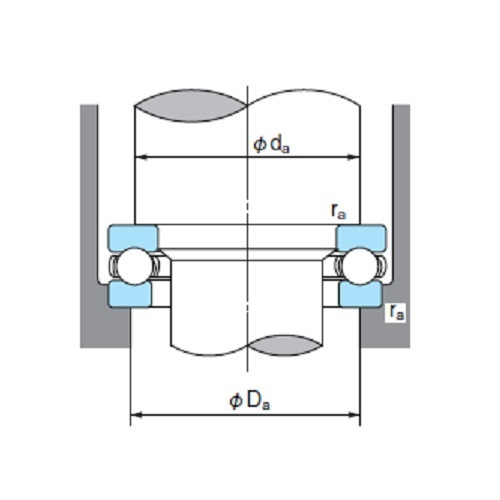

- Abutment And Fillet Dimension Da (min) Mm 37
- Abutment And Fillet Dimension Da (max) Mm 33
- Abutment And Fillet Dimension Ra (max) Mm 0.8
- Type Spherical Roller Thrust Bearings
- Series Inch
SKU: A0104913

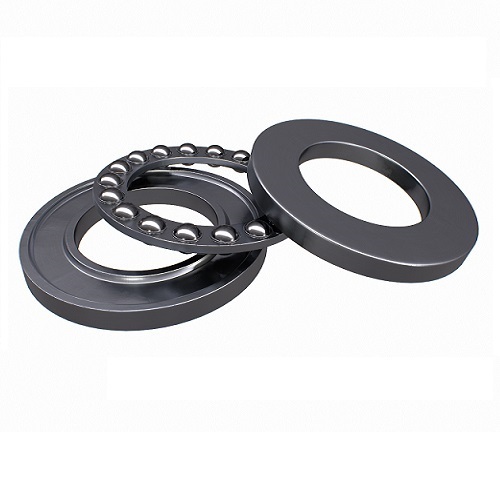

NACHI 0-8 Thrust Ball Bearings Inch Series O 25.4 x 45.244 x 15.875mm
Single-direction Thrust Ball Bearings Inch Series O
$23.06
