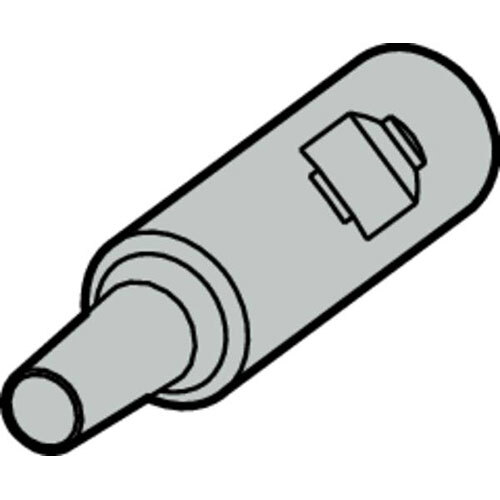

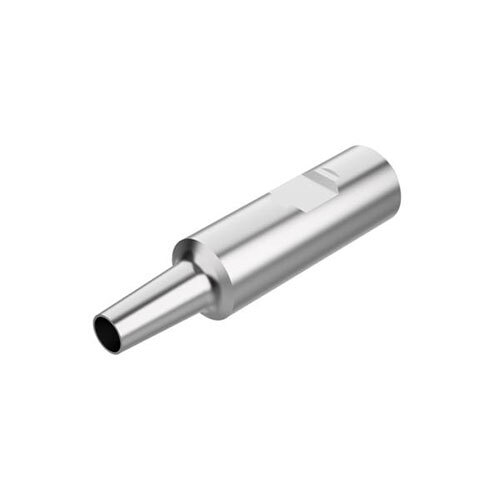

Seco Minimaster™ Shank MM06 Insert Taper Size 16 x 9 x 75mm (Weldon) MM06-16075.3-3009

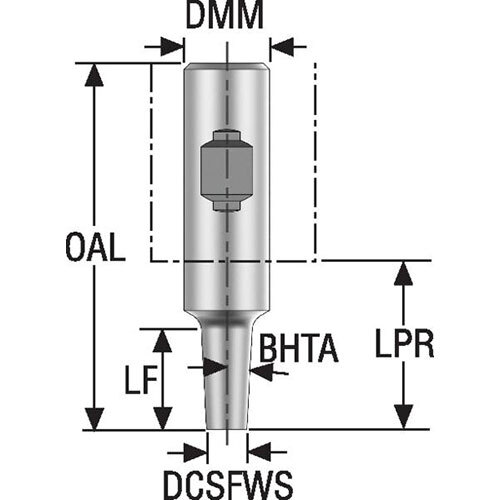

Minimaster™ Shank MM06 Weldon - Design 3 (Weldon Back End Tapered Front 87°/89°)

• Weldon shank type.
• MM06 insert taper size.
• Weldon back end tapered front 87°/89°.
• 3°, body half taper angle (BHTA).
• 80,000 rpm, rotational speed maximum (RPMX).

About Minimaster™

• Minimaster™ is a unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security.
• The flexible two-piece design combines shanks and inserts to save time, money and create a versatile tool that enables users to find a solution for almost every application whether they need to minimize the overhang, attain maximum stability, or more.
• When an insert is worn, users easily replace just the insert, saving the cost of replacing the entire tool and the time for regrinding.
• The Minimaster range encompasses a wide range of inserts and shanks, making it the most flexible end milling system in the industry.
• There are more than 600 combinations of inserts and shanks for each diameter between 6 – 20 mm, and the inserts can be ordered in many different versions such as under-sized inserts for keyway, square shoulder inserts with sharp edges or corner radius, center drilling, chamfering 45–60° or double chamfer, high feed inserts, plunge milling and copy milling inserts in 90–120° ball nose versions.
• Seco Minimaster for 3D milling is available in 2- and 3- flute versions, with the 3-flute version it is possible to improve the productivity with higher feed rates, and with the 2-flute version, it is possible to minimize the risk of vibration.
