Description

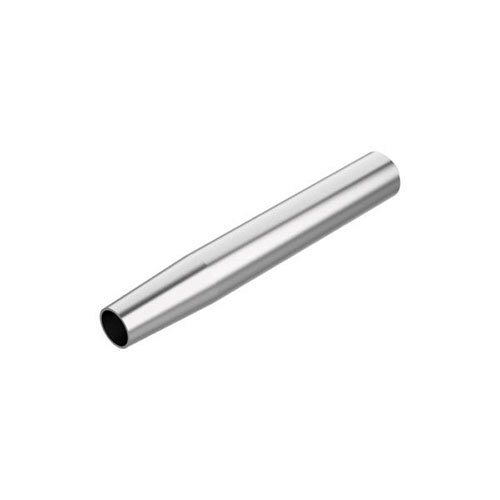

Seco Minimaster™ Shank MM10 Insert Taper Size 31.75 x 63.1 x 250mm (Cylindrical) MM10-1.25-10.0-0-10024

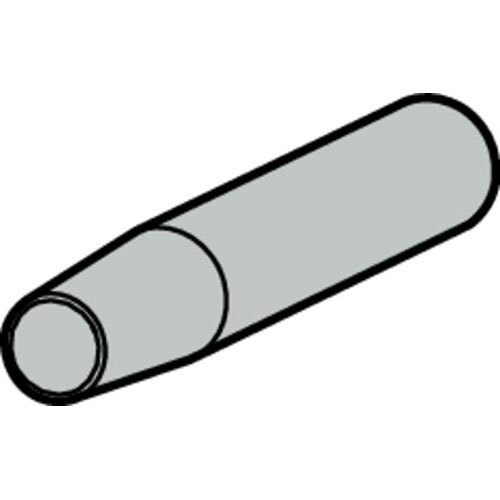

Minimaster™ Shank MM10 Cylindrical - Design 4 (Cylindrical Back End Tapered Front 80°/85°/87°)

  • Cylindrical shank type.
  • MM10 insert taper size.
  • Cylindrical back end tapered front 80°/85°/87°.
  • 10°, body half taper angle (BHTA).
  • 80,000 rpm, rotational speed maximum (RPMX).

About Minimaster™

  • Minimaster™ is a unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security.
  • The flexible two-piece design combines shanks and inserts to save time, money and create a versatile tool that enables users to find a solution for almost every application whether they need to minimize the overhang, attain maximum stability, or more.
  • When an insert is worn, users easily replace just the insert, saving the cost of replacing the entire tool and the time for regrinding.
  • The Minimaster range encompasses a wide range of inserts and shanks, making it the most flexible end milling system in the industry.
  • There are more than 600 combinations of inserts and shanks for each diameter between 6 – 20 mm, and the inserts can be ordered in many different versions such as under-sized inserts for keyway, square shoulder inserts with sharp edges or corner radius, center drilling, chamfering 45–60° or double chamfer, high feed inserts, plunge milling and copy milling inserts in 90–120° ball nose versions.
  • Seco Minimaster for 3D milling is available in 2- and 3- flute versions, with the 3-flute version it is possible to improve the productivity with higher feed rates, and with the 2-flute version, it is possible to minimize the risk of vibration.

Specifications

  • AIMS SKU A0121595
  • Brand Seco
  • Model Number 00096132
  • Barcode Number 96132000000104
  • Designation MM10-1.25-10.0-0-10024
  • Body Half Taper Angle (BHTA) Deg 10.0 deg
  • Coolant Supply Property (CSP) 1
  • Functional Length (LF) mm 63.1
  • Contact Surface Diameter Workpiece Side (DCSFWS) 9.5mm
  • Overall Length (OAL) mm 250
  • Rotational Speed Maximum (RPMX) Rpm 80000
  • Protruding Length (LPR) mm 190
  • Shank Diameter (DMM) mm 31.75
  • Type Minimaster™ Shank
  • Insert Taper Size MM10
  • Shank Type Cylindrical
SKU: A0121595

Seco Minimaster™ Shank MM10 Insert Taper Size 31.75 x 63.1 x 250mm (Cylindrical) MM10-1.25-10.0-0-10024

Minimaster™ Shank MM10 Cylindrical - Design 4

$513.04
RRP $641.30
SAVE $128.26 (20%)
