Description

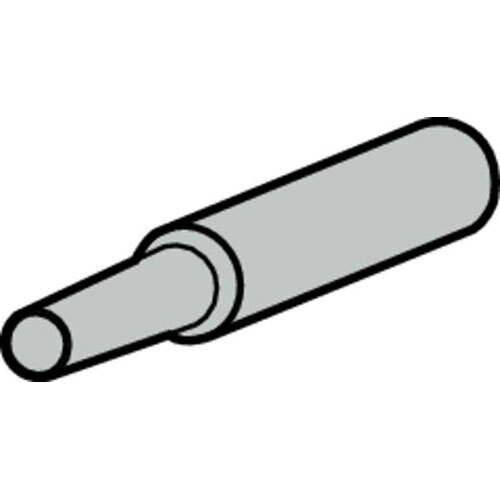

Seco Minimaster™ Shank MM06 Insert Taper Size 15.88 x 20 x 140mm (Cylindrical) MM06-0.62-5.5-0-1007

Minimaster™ Shank MM06 Cylindrical - Design 3 (Cylindrical Back End Tapered front 87°/89°)

  • Cylindrical shank type.
  • MM06 insert taper size.
  • Cylindrical back end tapered front 87°/89°.
  • 1°, body half taper angle (BHTA).
  • 80,000 rpm, rotational speed maximum (RPMX).

About Minimaster™

  • Minimaster™ is a unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security.
  • The flexible two-piece design combines shanks and inserts to save time, money and create a versatile tool that enables users to find a solution for almost every application whether they need to minimize the overhang, attain maximum stability, or more.
  • When an insert is worn, users easily replace just the insert, saving the cost of replacing the entire tool and the time for regrinding.
  • The Minimaster range encompasses a wide range of inserts and shanks, making it the most flexible end milling system in the industry.
  • There are more than 600 combinations of inserts and shanks for each diameter between 6 – 20 mm, and the inserts can be ordered in many different versions such as under-sized inserts for keyway, square shoulder inserts with sharp edges or corner radius, center drilling, chamfering 45–60° or double chamfer, high feed inserts, plunge milling and copy milling inserts in 90–120° ball nose versions.
  • Seco Minimaster for 3D milling is available in 2- and 3- flute versions, with the 3-flute version it is possible to improve the productivity with higher feed rates, and with the 2-flute version, it is possible to minimize the risk of vibration.

Specifications

  • AIMS SKU A0121539
  • Brand Seco
  • Model Number 75054604
  • Barcode Number 54604750000108
  • Designation MM08-0.62-5.9-0-1011

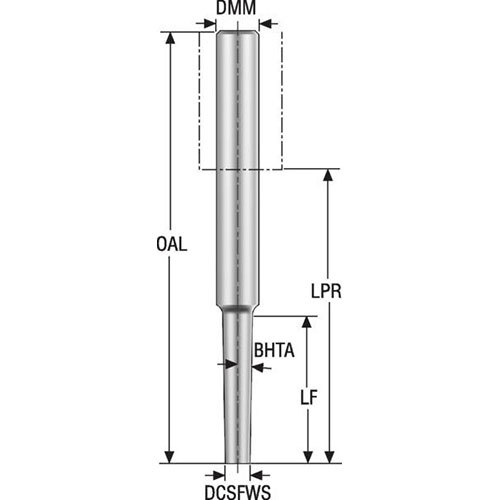

  • Body Half Taper Angle (BHTA) Deg 1.0 deg
  • Coolant Supply Property (CSP) 1
  • Functional Length (LF) mm 30
  • Contact Surface Diameter Workpiece Side (DCSFWS) 7.6mm
  • Overall Length (OAL) mm 150
  • Rotational Speed Maximum (RPMX) Rpm 80000
  • Protruding Length (LPR) mm 102
  • Shank Diameter (DMM) mm 15.88
  • Type Minimaster™ Shank
  • Insert Taper Size MM06
  • Shank Type Cylindrical
SKU: A0121539

Seco Minimaster™ Shank MM08 Insert Taper Size 15.88 x 30 x 150mm (Cylindrical) MM08-0.62-5.9-0-1011

Minimaster™ Shank MM08 Cylindrical - Design 3

$247.28
RRP $309.10
SAVE $61.82 (20%)
