Specifications

AIMS SKU A0121761
Brand Seco
Model Number 00012961
Barcode Number 12961000000207
Designation MM10-09512-R03A30-M03,F40M
Coolant Supply Property (CSP) 1
Ramping Angle Maximum (RPMX) deg 15.0 deg
Net Weight Kg 0.014
Torque (TQ) Nm 12
Flute Helix Angle (FHA) deg 30.0 deg
Helical Interpolation Hole Diameter Max (cmax) Mm 18.2
Rake Angle Axial (gamp) Deg 0.0 deg
Rake Angle Radial (gamf) Deg 10.0 deg
Grade Type Carbide PVD
Helical Interpolation Hole Diameter Min (cmin) Mm 11.6
Tool Cutting Edge Angle In Feed Direction Side 90.0 deg
Depth Of Cut Max In Feed Direction Side (APMXS) mm 11.8
Peripheral Effective Cutting Edge Count (ZEFP) 3
Corner Radius (RE) mm 0.3
Cutting Edge Effective Length (LE) mm 11.87
Cutting Diameter (DC) mm 9.525
Functional Length (LF) mm 15.72

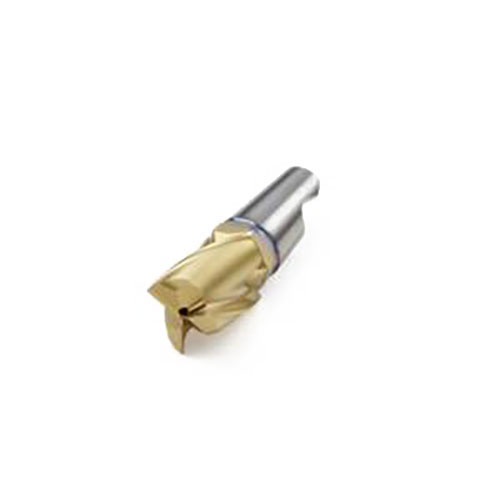

• Type Minimaster™ Square Shoulder Insert
• Grade F40M
• Insert Taper Size MM10
