Specifications

AIMS SKU A0122112
Brand Seco
Model Number 74052645
Barcode Number 52645740000205
Designation MM10-09510-B90P-M04,T60M
Helical Interpolation Hole Diameter Max (cmax) Mm 17.9
Rake Angle Axial (gamp) Deg 0.0 deg
Helical Interpolation Hole Diameter Min (cmin) Mm 10.3

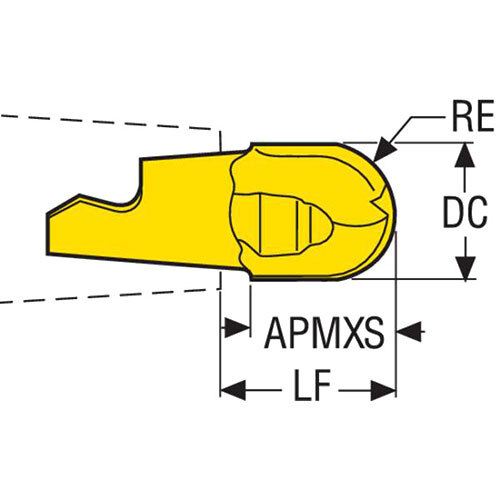

Corner Radius (RE) mm 4.76
Grade Type Carbide PVD
Zeripheral Effective Cutting Edge Count (ZEFP) 2
Sphere Angle (SA) deg 180.0 deg
Rake Angle Radial (gamf) Deg 0.0 deg
Tool Cutting Edge Angle In Feed Direction Side 90.0 deg
Cutting Diameter (DC) mm 9.525
Net Weight Kg 0.01
Flute Helix Angle (FHA) deg 0.0 deg
Ramping Angle Max (rmpx) Deg 15.0 deg
Coolant Supply Property (CSP) 0
Depth Of Cut Max In Feed Direction Side (APMXS) mm 8.7
Functional Length (LF) mm 11.74
Torque (TQ) Nm 12

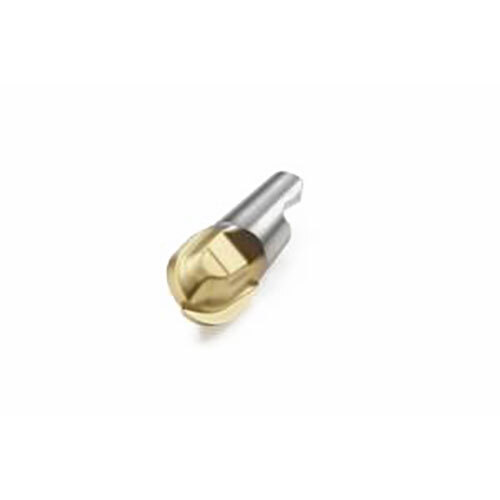

• Type Minimaster™ Ballnose Insert
• Insert Taper Size MM10
• Grade T60M
