Description

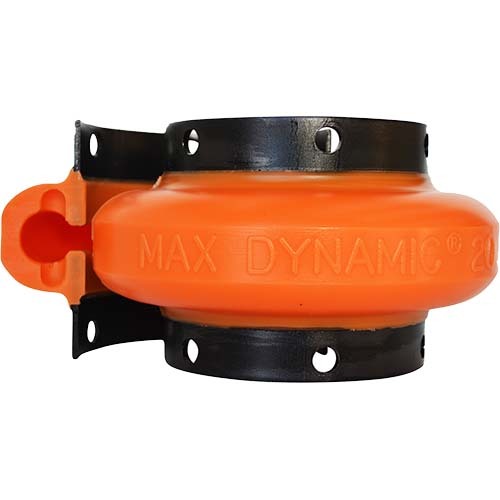

Max Dynamic Coupling Poly Urethane Element

About Characteristics of MAX DYNAMIC Coupling

Facility protection for twirl and twist, impact and abrasion.
Very simple replacement and maintenance without oil and grease.
Very simple replacement without the separation of motor or connector on the related line due to it's simple structure.
Possible for the dissimilar connection and assembling with same hub.
Polyurethane based for having good water resistance, chemical resistance.
Highest flexible elasticity on run.
Less noise.

About Application

Specifications

AIMS SKU A0151047

Weight (kg) 1.15

Max. Bore (mm) 55

Torque (kgf.m) 16.7

Max.rpm 7500

Power Rating (kw/rpm) 0.017

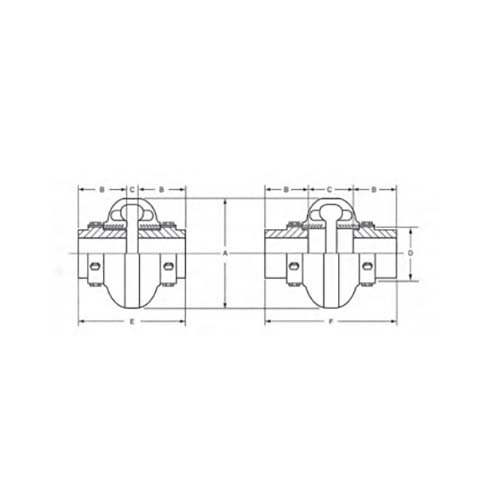

A Out Dia 162

B Hub Length 45

C Max. Shaft Spacing 53

D Hub Dia 93

E Total Length In 101

F Total Length Out 143

C Min. Shaft Spacing 11
