***Special Order. Contact AIMS for further assistance.***

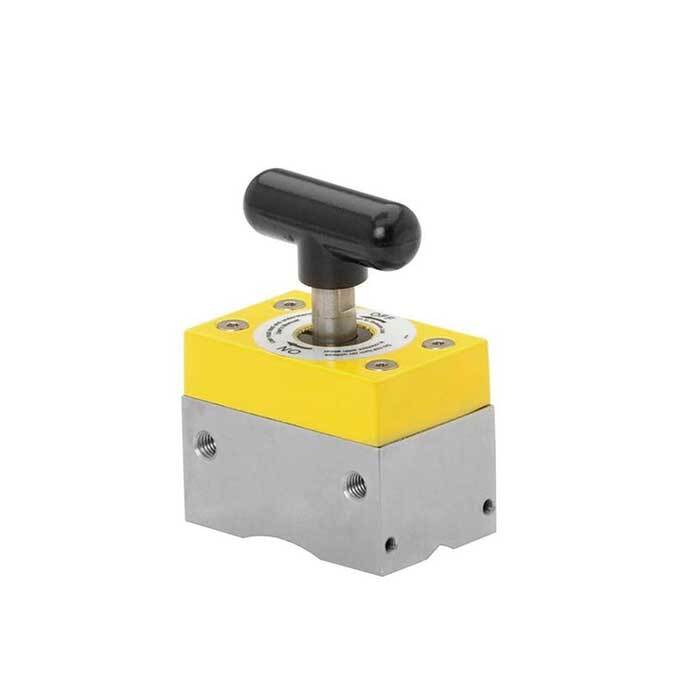

Magswitch MagSquare

  • Welders and fabricators are raving about all the uses, convenience, and time savings with Magswitch MagSquares
  • MagSquares are extremely powerful on off magnetic blocks with strong holding force available on all sides.
  • Welders have never enjoyed this complete control over incredibly strong magnets (1,000 lbs (454 kg) on the MagSquare 1000).
  • You can precisely position the MagSquare and material, and then turn the magnet on.
  • MagSquares feature multiplane workholding capability.
  • It takes away the need for time consuming manual clamping on so many jobs, and works anywhere there is steel; you don’t need and edge like you do with CClamps.
  • All MagSquares are machined at 90 degrees, have pre tapped holes on all sides for mounting tools, jigs and fixtures.
  • Fast 180 degree turn of the knob turns the MagSquare on and off. When off, nothing sticks to them.
  • Once you understand all the uses, the time savings in set ups, and the ability to control these powerful magnetic blocks - you will want the entire range.


  • Multiplane magnetic grip on 5 sides
  • Machined at 90-degrees with pre-tapped holes for mounting
  • Mounts anywhere – no limitations like clamps
  • Magnet turns completely On and Off – Magnet stays clean as it is easy to wipe debris off
  • Does not require an electrical power source
  • Holds flat and round surfaces of steel


  • AIMS SKU A0160212
  • Brand Magswitch
  • Model Number 8100494
  • Barcode Number 878628001583
  • Net Weight (kg) 0.23
  • (2:1) Shear Working Load (kg) 8.4
  • Net Weight (lb) 0.5
  • Max Breakaway (lb) 150
  • (2:1) Shear Working Load (lb) 18.5
  • Full Saturation Thickness (in) 0.25
  • Full Saturation Thickness (mm) 6.35
  • Magnetic Pole Footprint (mm) 48 x 31
  • Max Breakaway (kg) 68
  • Overall Height (mm) 64.25
  • Type MagSquare
SKU: A0160212

Magswitch MagSquare 165 Max Breakaway 150lb - 8100494
