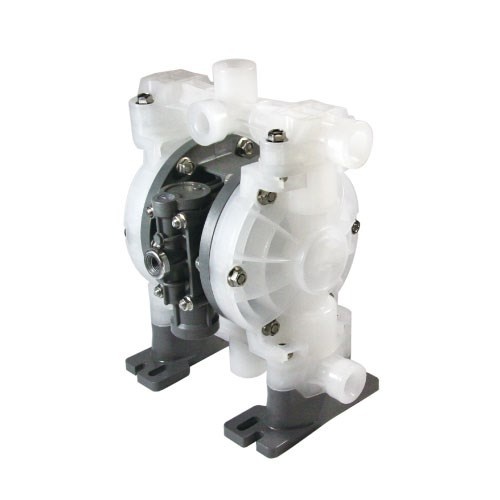

Macnaught Air Operated Double Diaphragm Pump - 1/2"
- Experience the next level of fluid transfer efficiency with our Max Flow Series Double Diaphragm Pump.
- Made in Japan for precision and durability, these pumps operate at a 1:1 ratio with a 62 LPM flow rate, making them ideal for high-volume, low air consumption applications across industries.
- Dependable, low-maintenance, and versatile.
- Designed to keep your operations running smoothly.
Technical Specifications
- Max air pressure: 20 to100 PSI or 1.37 to 6.89 bars
- Port Definition: Multiport
- Inlet/outlet: 1/2" BSPT (F)
- Air inlet: 1/4" BSPT (F)
- Max flow rate: 62 LPM ( 16 GPM)
- Suction lift : 2m (dry)
- Suction lift: 8m (Wet)
- Max solids handling: 1 mm
- Fluid temperature: 0ºC – 60ºC & (32ºF - 140ºF)
- Wetted Parts (Diaphragm/Balls/Seats): PP, NBR

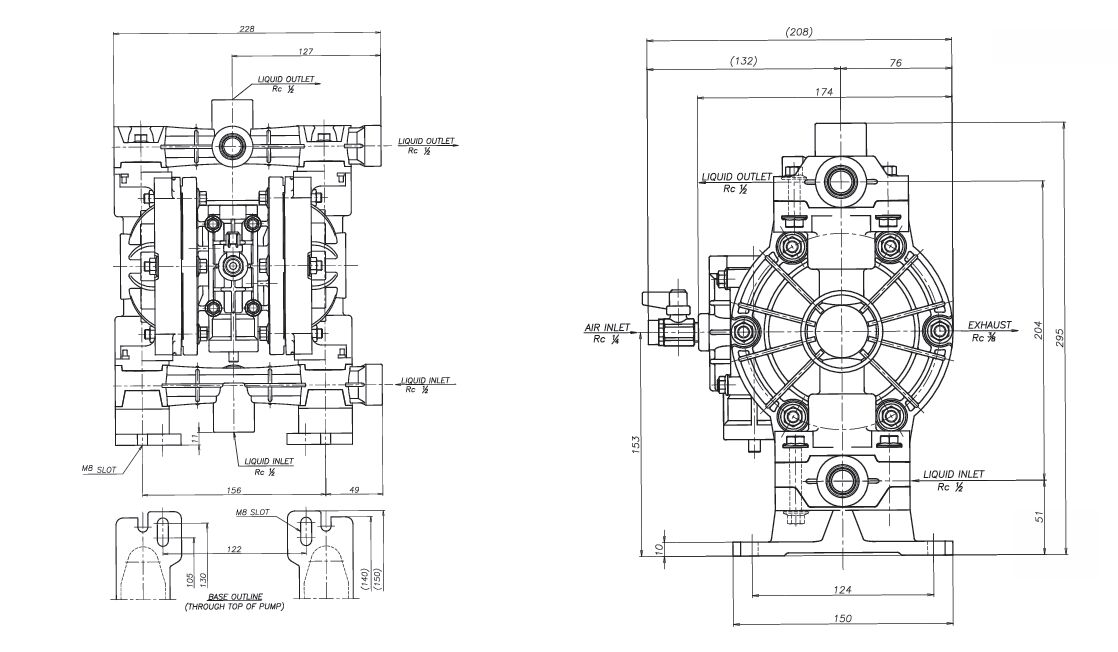

- Height: 29.5cm, Width: 22.8cm, Depth: 17.4cm
- Air Motor: PP, NBR
Features & Benefits
- Optimized Flow: Lighter spool ensures faster, smoother operation.
- Effortless Maintenance: Easily accessible air motor for quick and hassle-free servicing.
- Dry-Run Safe: No overheating, runs without liquid.
- Deadhead Resistant: Withstands closed discharge without damage.
- Self-Priming: Eliminates the need for manual priming.
- No inline lubrication required: Reduces maintenance and operational costs.
- Diaphragm: Nitrile Buna-N (NBR).
- Pump Wetted Parts: Polypropylene(PP),Nitrile Buna-N (NBR).
- Multi Port: Versatile multiport design for flexible installation and enhanced efficiency.
Package Includes
Note: Recommended fluids (Oils and Engine Coolants (new & used), Oily water, Diesel, Mild Chemicals ( Acetic Acid, Phosphoric Acid), Liquid Fertilizers).
