Mackay M401200 Surefoot Levelling Isolator 300 to 1200kg Load - 144mm

Description

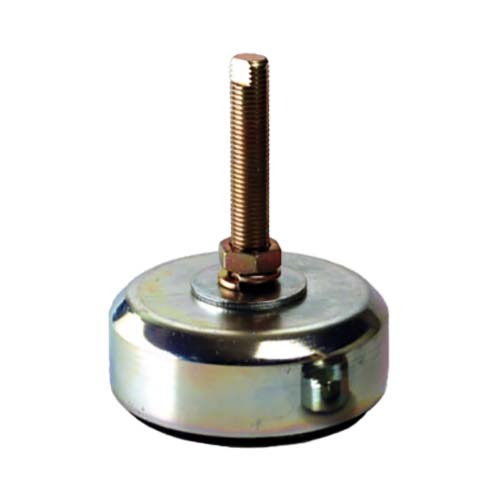

Mackay Surefoot Levelling Isolator

Mackay Sure Foot Levelling Isolators are designed for cost-effective machine levelling for Isolator loads up to 6000Kg.
Offer an effective and durable method for isolating free standing equipment and machinery on non-level surfaces.
Sure Foot standard range is made with electrolytically plated zinc applied to automotive standards. Where superior corrosion resistance is required, it is recommended to use the Sure Foot stainless Steel alternative.
Made using Nitrile rubber, Sure Foot offers superior chemical and oil resistance in comparison to natural rubber.

Specifications

AIMS SKU A0166923

Brand Mackay

Model Number M401200

Barcode Number 9313699024518

Thread Size M16 x 2.0 mm

Weight (kg) 1.1

Compression load (kg) 300 - 1200

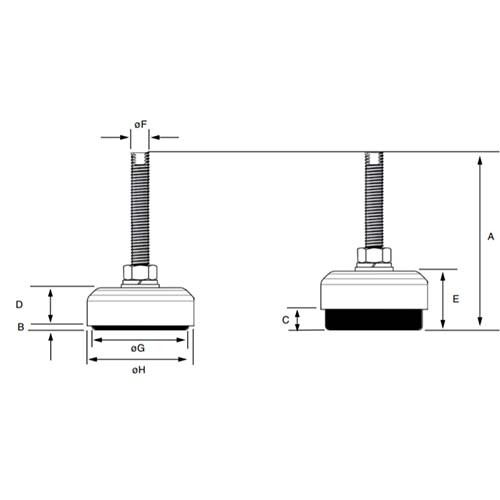

Overall Height in (mm) 144

Exposed Base Min (mm) 8.8

Exposed Base Max (mm) 28

Adjustment Min (mm) 50.8

Adjustment Max (mm) 70

Base Diameter (mm) 91

Cap Diameter (mm) 101

Deflection At Exposed Base (mm) 1.5 - 5.9

Type Sure Foot Levelling Isolator
Material Nitrile Rubber/Plated Zinc
