Description

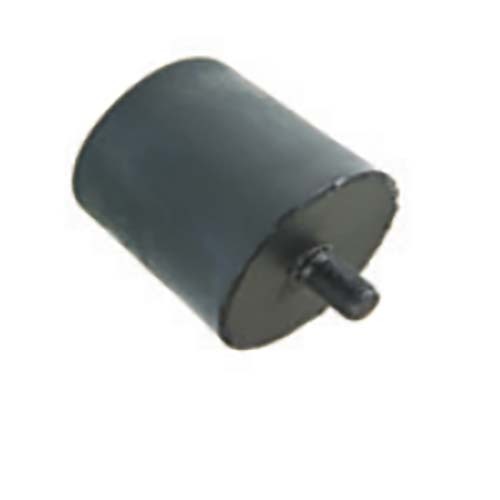

Mackay Cylindrical Bonded Buffer

  • These buffers are equally adaptable when controlling impact or when used as machine feet; they also may be used as snubbing rubbers when excessive shock loads are encountered in resiliently mounted equipment. A rugged rubber bonded to metal unit ensures simplicity of application and ease of installation.

Specifications

  • AIMS SKU A0170768
  • Brand Mackay
  • Model Number M174
  • Barcode Number 9313699029537
  • Weight (kg) 0.15
  • Static Deflection (mm) 6

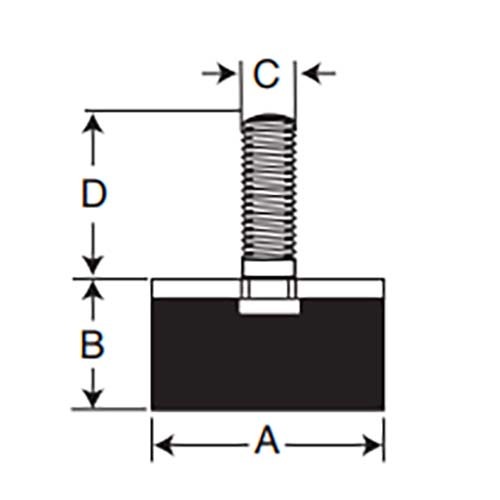

  • Dimension A (mm) 50
  • Dimension B (mm) 50
  • Dimension D (mm) 16
  • Dimension C 3/8 UNF
  • Static Load (kg) 125
  • Buffing Deflection (mm) 20
  • Buffing Load 600 kg
  • Type Cylindrical Bonded Buffer
  • Material Rubber/Metal
SKU: A0170768

Mackay M174 Cylindrical Bonded Buffer 50mm Buffing Load 600kg

Mackay Cylindrical Bonded Buffer

$36.05
