Description

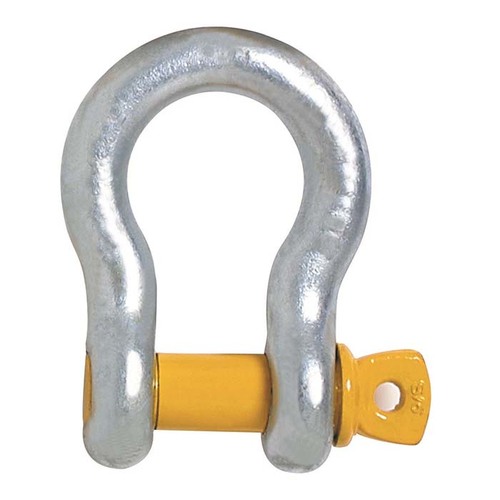

Beaver Screw Pin Anchor Bow Shackle

  • These yellow pin Grade S screw pin shackles are manufactured by Beaver.
  • Comply with AS 2741.
  • Screw pin shackles are used mainly for non-permanent applications.
  • The Grade S shackles are recommended where high strength is required such as lifting, towing, and 4WD applications.

Specifications

  • AIMS SKU A0192242
  • Brand Beaver
  • Model Number 242308
  • WLL (kg) 750
  • Shape Bow

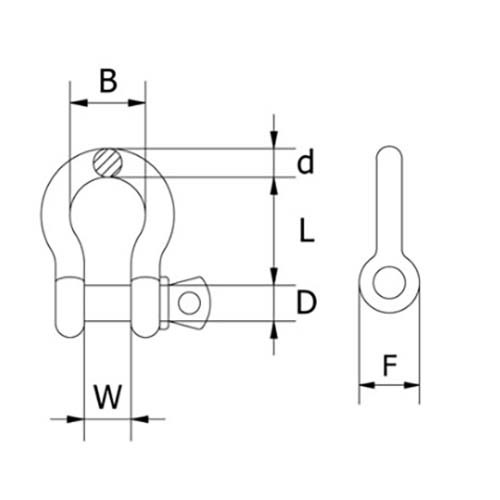

  • Pin Diameter (D) 10mm
  • Weight (kgs) 0.09
  • Closing Method Screw
  • Size in (mm) 8 x 10
  • Inside Width (W) 13mm
  • Inside Length (L) 21mm
  • Width of Bow (B) 31mm
  • Diameter Boss (F) 21mm
  • Type Bow Shackle
  • Grade Grade S
SKU: A0192242

Beaver Grade S Screw Pin Bow Shackle - 8mm x 10mm x 750kg 0.75T WLL

Beaver Screw Pin Anchor Bow Shackle

$2.51
