Specifications

AIMS SKU A0171046
Brand Mackay
Model Number M154040
Barcode Number 9313699046411
Weight (kg) 0.261

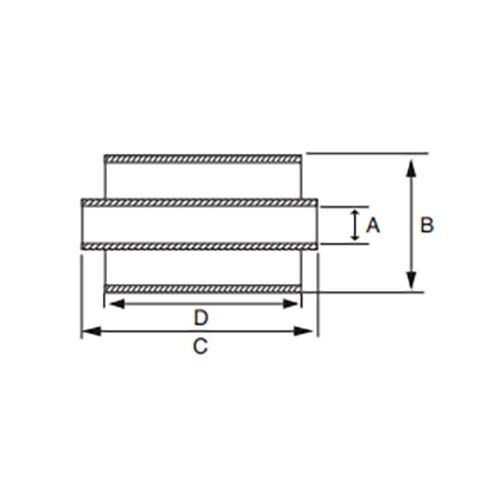

Nominal Dimension A (mm) 25
Nominal Dimensions (D x C x B) mm 50 x 56 x 50

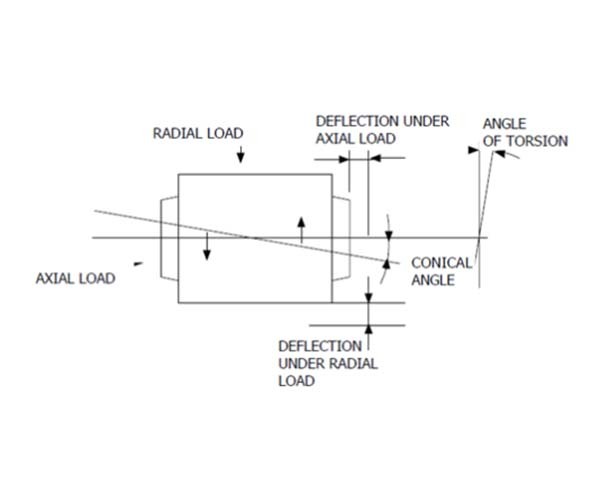

Torsion MT Max (Nm) 34
Angle Torsion Max (Deg) 6.6
Axial Load Max (N) 2900
Axial Load Max (mm) 3
Radial Load FR Max (N) 10000
Radial Load SR Max (mm) 1

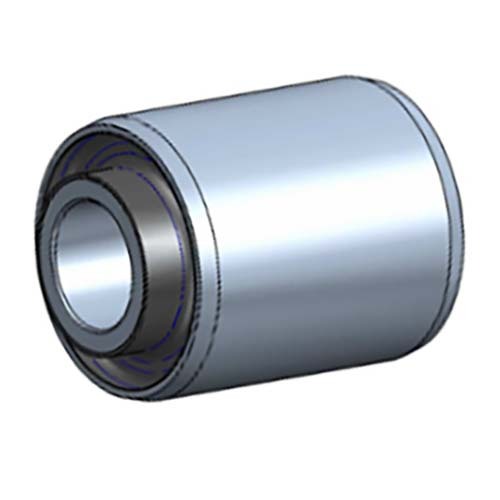

• Type Flexible Bearing
• Material Steel / Rubber
