Description

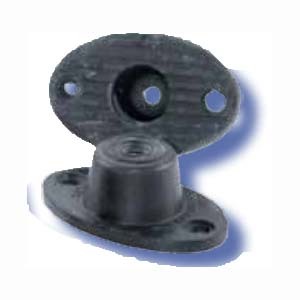

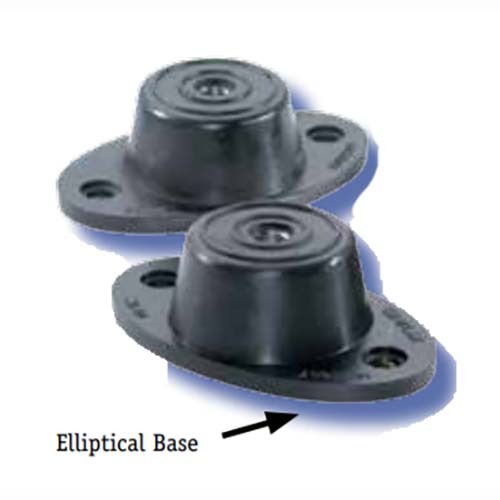

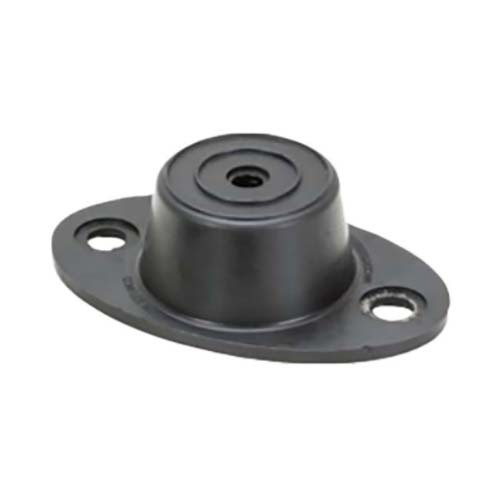

Mackay Conflex Isolator Large

  • Conflex isolators are designed to meet almost all machinery installations within the load range.
  • Available in four rubber hardnesses (Duro) they are the versatile answer to your mobile or static vibration problems.
  • Rubber base for anti-skid when used without bolting base to the floor.

Specifications

  • AIMS SKU A0167927
  • Brand Mackay
  • Model Number M111455
  • Barcode Number 9313699033671
  • Thread Size M12
  • Weight (kg) 0.43
  • Hole Diameter 14 mm
  • Head Diameter (mm) 60
  • Width 85 mm
  • Length in (mm) 140
  • Height Size (mm) 44
  • Centre To Centre 104 mm
  • Duro 55
  • Compression Max Load (kg) 240
  • Deflection at Max Load (mm) 6
  • Type Conflex Isolator
  • Material Rubber
SKU: A0167927

Mackay M111455 Conflex Isolator Large 55 Duro 140 x 85 x 44mm Load 240kg

Mackay Conflex Isolator Large

$82.94
