Specifications

AIMS SKU A0166969
Brand Mackay
Model Number M111145
Barcode Number 9313699021739
Thread Size M8
Weight (kg) 0.08

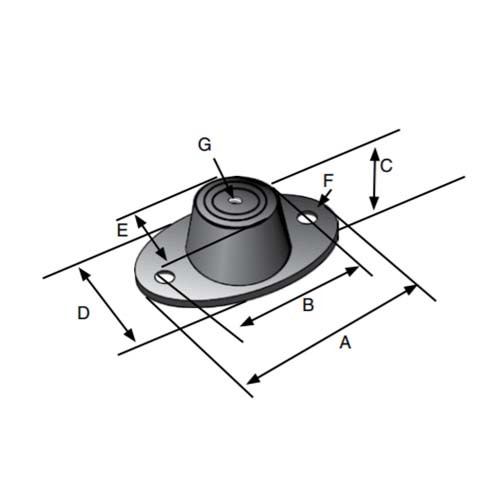

Hole Diameter 8.5
Durometer 45
Head Diameter (mm) 31
Width 50
Length in (mm) 80
Height Size (mm) 28
Centre To Centre 60
Compression Max Load 40
Shear Load (kg) 10
Shear Deflection (mm) 5
Colour Code Red
Deflection at Max Load (mm) 5
Tightening Torques (nm) 10

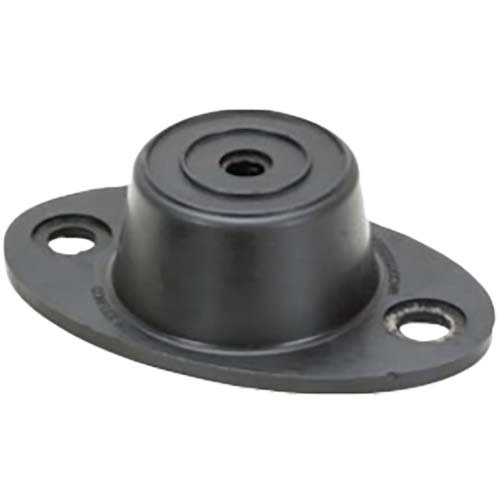

• Type Conflex Isolator
• Material Rubber
