Description

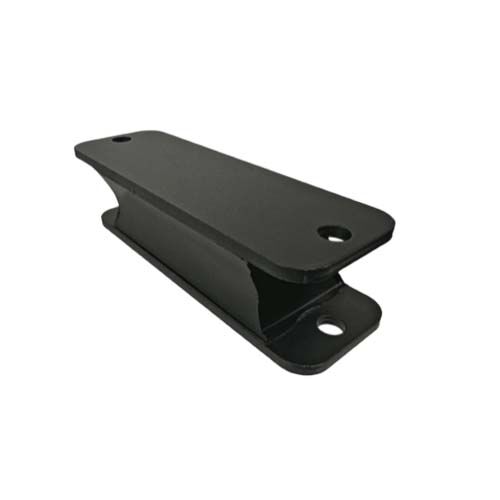

Mackay Cushyfoot Insert - Vibration Isolator

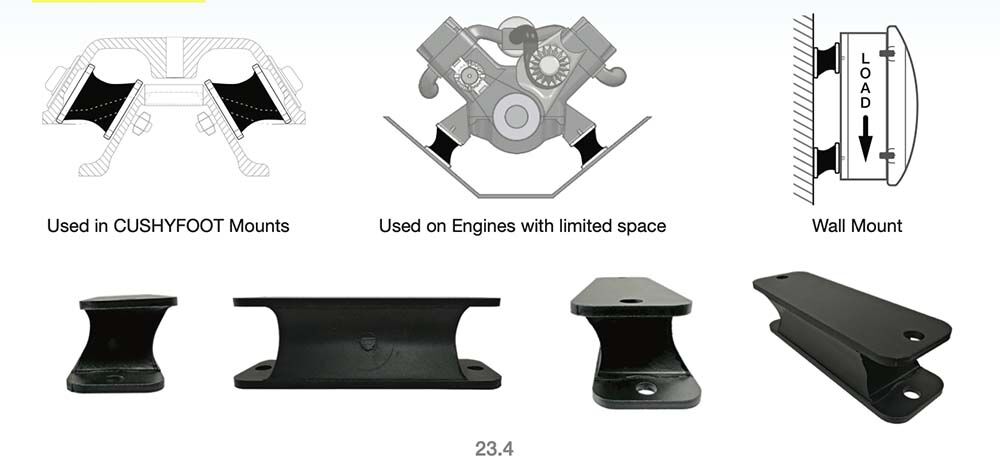

  • Cushyfoot - Plate isolator.
Part No. Compression Load (kg) Compression DEF (mm) Shear Load (kg) Shear DEF (mm)
M1734245 95 2.5 15 2.5
  210 5 30 5
  355 7.5 45 7.5
  535 10 60 10
  740 12.5 75 12.5
  970 15 90 15
M1734255 145 2.5 20 2.5
  325 5 45 5
  545 7.5 65 7.5
  825 10 90 10
  1140 12.5 115 12.5
  1500 15 135 15
M1734260 185 2.5 25 2.5
  415 5 55 5
  705 7.5 85 7.5
  1060 10 115 10
  1465 12.5 145 12.5
  1930 15 175 15

Specifications

  • AIMS SKU A0210232
  • Brand Mackay
  • Model Number M1734245
  • Compression Load 95 - 970 kg
  • Shear Load 15 - 90 kg
  • Compression DEF (mm) 2.5 - 15.0
  • Shear DEF (mm) 2.5 - 15.0
  • Type Cushyfoot Insert
SKU: A0210232

Mackay M1734245 Cushyfoot Insert 95 - 970kg (Compression) x 15 - 90kg (Shear)

Mackay Cushyfoot Insert - Vibration Isolator

$77.01
