Description

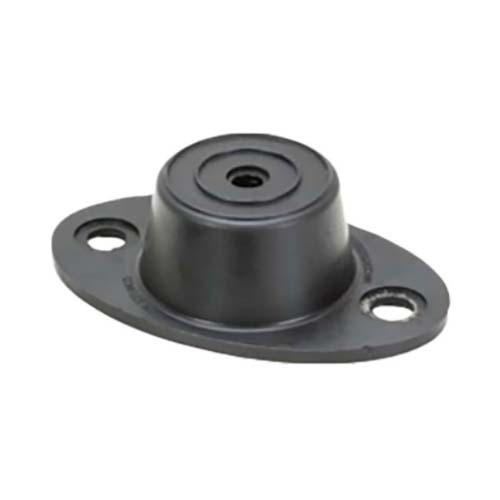

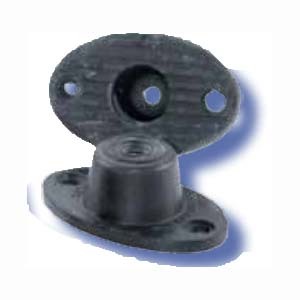

Mackay Conflex Isolator Medium HD

  • Conflex isolators are designed to meet almost all machinery installations within the load range.
  • Available in four rubber hardnesses (Duro) they are the versatile answer to your mobile or static vibration problems.

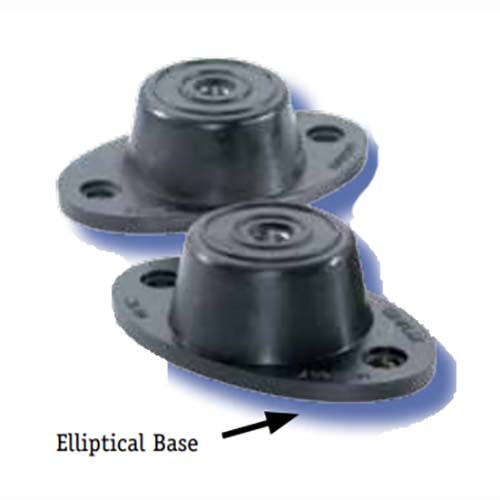

  • Rubber base for anti-skid when used without bolting base to the floor.

Specifications

  • AIMS SKU A0167921
  • Brand Mackay
  • Model Number M1112D35
  • Barcode Number 9313699033640
  • Thread Size M10
  • Compression Max Load (kg) 80
  • Height Size (mm) 48
  • Head Diameter (mm) 45
  • Duro 35
  • Length in (mm) 100
  • Hole Diameter 11.5 mm
  • Deflection at Max Load (mm) 10
  • Centre To Centre 76 mm
  • Width 60 mm
  • Weight (kg) 0.17
  • Type Conflex Isolator
  • Material Rubber
SKU: A0167921

Mackay M1112D35 Conflex Isolator Medium HD 35 Duro 100 x 60 x 48mm Load 80kg

Mackay Conflex Isolator Medium HD

$26.07
