Description

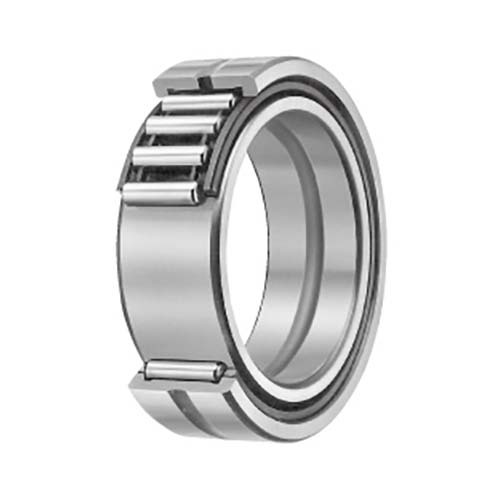

Machined Type Needle Roller with Inner Ring - NA69

  • Metric series.
  • Cage needle roller bearing with inner ring.

About Machined Type Needle Roller Bearings

  • Machined Type Needle Roller Bearings have an outer ring made by machining, heat treatment, and grinding.
  • The outer ring has stable high rigidity and can be easily used even for light alloy housings.
  • These bearings are available in various types and optimally selectable for different conditions such as heavy loads, high-speed rotation and low-speed rotation.
  • They are most suitable for general-purpose applications.

About Structure and Features

  • Machined Type Needle Roller Bearings are bearings with a low sectional height and large load ratings.
  • The outer ring has high rigidity and can easily be used even for light alloy housings.
  • These bearings are available in metric series and inch series, both of which have the caged type and the full complement type.
  • It is therefore possible to select a suitable bearing for use under various conditions such as heavy loads and high-speed or low-speed rotations.
  • In addition, there are bearings with and without an inner ring.
  • As the type without inner ring uses a shaft as the raceway surface, a compact design is possible.

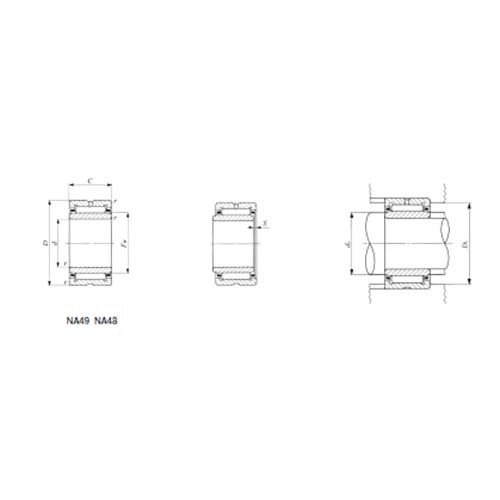

Specifications

  • AIMS SKU A0154319
  • Brand IKO
  • Model Number NA6901/IKO
  • Width (mm) 22
  • Basic Static Load Rating C0 (N) 23000
  • da Max. 22
  • S 0.5
  • Basic Dynamic Load Rating C (N) 17100
  • da Min. 14
  • Outside Diameter (mm) 24
  • Allowable Rotational Speed (rpm) 25000
  • Fw (mm) 16
  • rs min 0.3
  • Inside Diameter (mm) 12
  • Type Needle Roller Bearing
SKU: A0154319 On Sale

IKO Machined Type Needle Roller Bearing w/ LRT-121622 Inner Ring 12x24x22mm

Machined Type Needle Roller w/ Inner Ring - NA6901

$45.82
$65.46
