Specifications

AIMS SKU A0074918
Fastener Size M33
Fastener Length 200 mm
Bore Hole (mm) 200
Length (L) M33

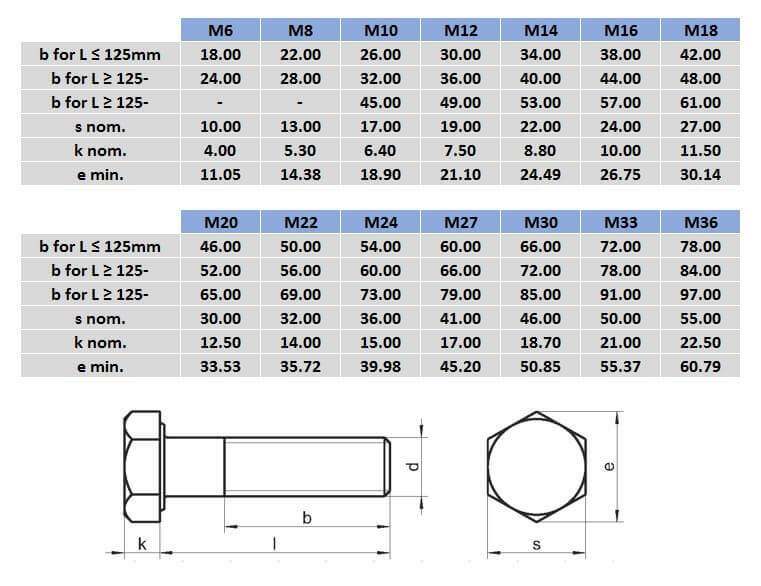

b for L < 125mm 72
b for L > 125-200mm 78
s nom. 50
k nom. 21
e min. 55.37
b for L > 200mm 91

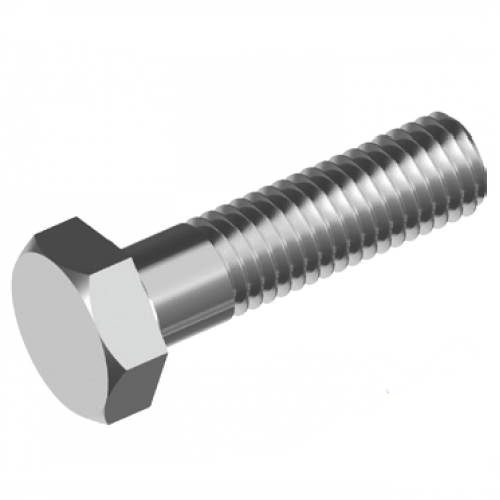

• Type Hex Bolt
• System of Measurement Metric
• Material 316 Stainless Steel
• Drive Type Hex Head
• High Tensile No
