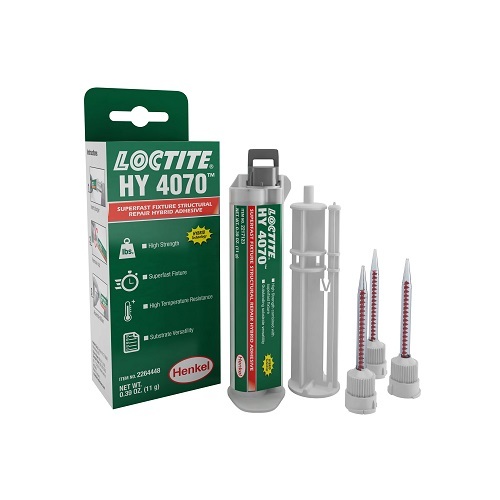

Loctite HY 4070 Universal Bonder

• Loctite HY 4070 Universal Bonder is designed for the assembly of parts with bond gaps up to 0.2 in (5 mm), and/or for applications where the complete cure of excess adhesive is a must. The gel consistency prevents adhesive flow even on vertical surfaces. HY 4070 is ideally suited for applications where temperature and moisture resistance is required.
• Best application results are achieved with use of the Loctite cyanoacrylate mixing nozzle (contained in the 11 gram kit).

Features and Benefits

• Temperature resistance from -40 to +100°C
• Gap filling up to 5 mm
• Excellent bonding characteristics to a variety of substrates including plastics, rubbers, and metals
• Fast fixturing

Technical Information

• Application method: Dispense System
• Applications: Bonding Dissimilar Materials, Bonding Plastic, Bonding Rubber, Construction, Direct Bonding, Edge Bonding, Interior Repairs, Structural Bonding
• Cure type: Room Temperature (Ambient) Cure, Two Component Mix
• FEA (finite element analysis): Finite Strain, Viscoelastic
• Fixture time, Aluminium (etched) 0.5mm gap: <60.0 sec.
• Gap fill: 5.0 mm
• Mix ratio, by volume: 10 : 1
• Number of components: 2 Part
• Recommended for use with - omposite, Composite: Advanced Composites, Dry Surface, Elastomer: Highly Filled Elastomer, Epoxy, Fiberboard, Gel Coat, Laminate, Metal, Non-Gel Coat, Painted Surface, Phenolic, Plastic, Rubber, Thermoplastic, Thermoset, Urethane: Cast Urethane, Vinyl, Wood
• Shear strength, Steel (grit blasted) - 25.0 N/mm² (3625.0 psi )
• Key characteristics, Mixed - Cure Speed: Ultra Fast Cure, Gap Filling, Moisture Resistant, Multipurpose
• Operating temperature, Mixed: -40.0 - 100.0 °C (-40.0 - 212.0 °F )
• Casson viscosity, cone & plate, Resin @ 25.0 °C - 200.0 - 1300.0 mPa·s (cP)
• Colour, Resin, Yellow
• Colour, Hardener, Clear
• Viscosity, cone & plate, Hardener @ 25.0 °C Shear Rate 1,000 s?¹ - 1.0 - 30.0 mPa·s (cP)
