Specifications

AIMS SKU A0108504
Brand Llambrich
Model Number MT3B12
Barcode Number 8436004854622

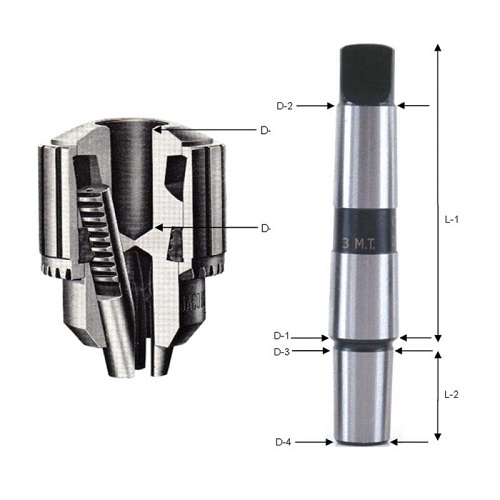

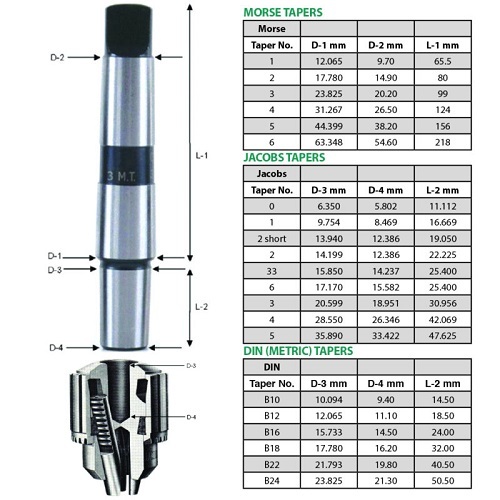

Morse Taper 3
Overall Length (mm) 121
Diameter 1 (D-1) mm 23.825
Diameter 2 (D-2) mm 20.2
Length 1 (L-1) mm 99
Diameter 3 (D-1) mm 12.065
Diameter 4 (D-2) mm 11.1
Length 2 (L-2) mm 18.5
DIN Taper B12
• Barcode 8436004852659
• Type Drill Chuck
