Description

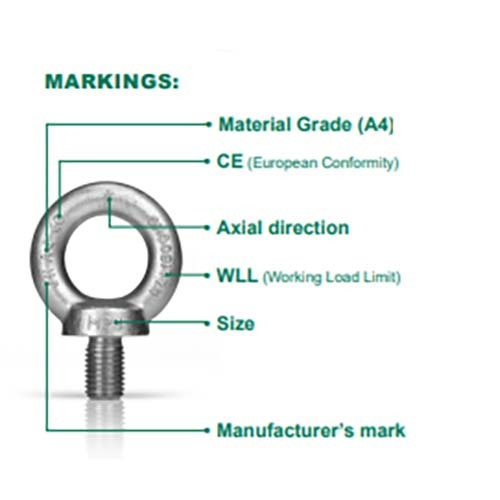

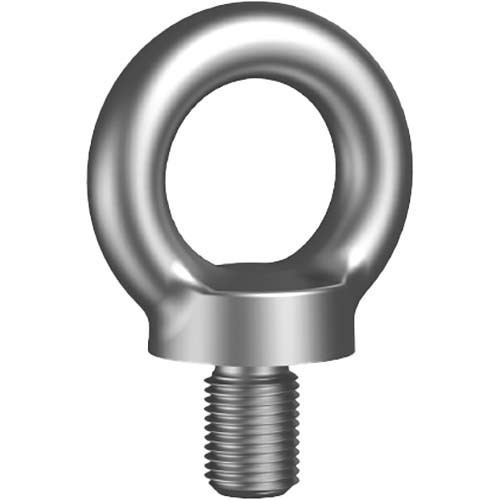

Lifting Eye Bolt DIN 580 - Stainless Steel 316 Grade A4

  • 316 Stainless Steel.
  • Grade A4.
  • DIN 580.

Features

  • Eyebolt approved and certified for lifting.
  • Can be used in axial or angular loading.

Applications

  • Connection point for anchoring, rigging, pulling, lifting, or hoisting.
  • Can be used with ropes, cables, shackles, and hooks.
  • Threaded into steel equipment, machine, and structures.
  • Bolt through steel or timber profiles.

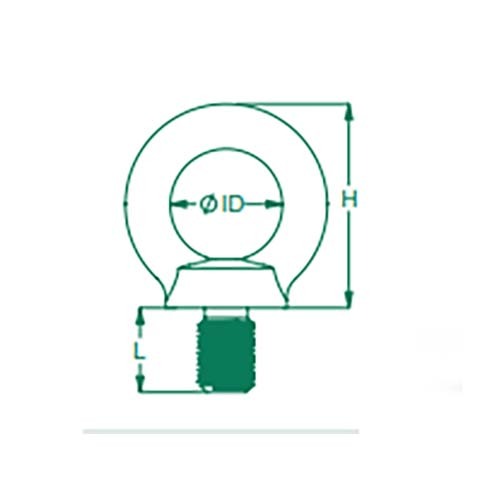

Specifications

  • AIMS SKU A0169404
  • Size M8
  • Height H (mm) 36
  • Length L (mm) 13
  • Inside Eye ID (mm) 20
  • Working Load WLL (kg) 140
  • Type Eye Bolt
  • Material 316 Stainless Steel
  • Grade Grade A4
  • Standard DIN 580
SKU: A0169404

Lifting Eye Bolt M8 DIN 580 Stainless Steel 316 Grade A4 - Pack of 20

Lifting Eye Bolt DIN 580 - Stainless Steel 316 Grade A4

$201.15
