Description

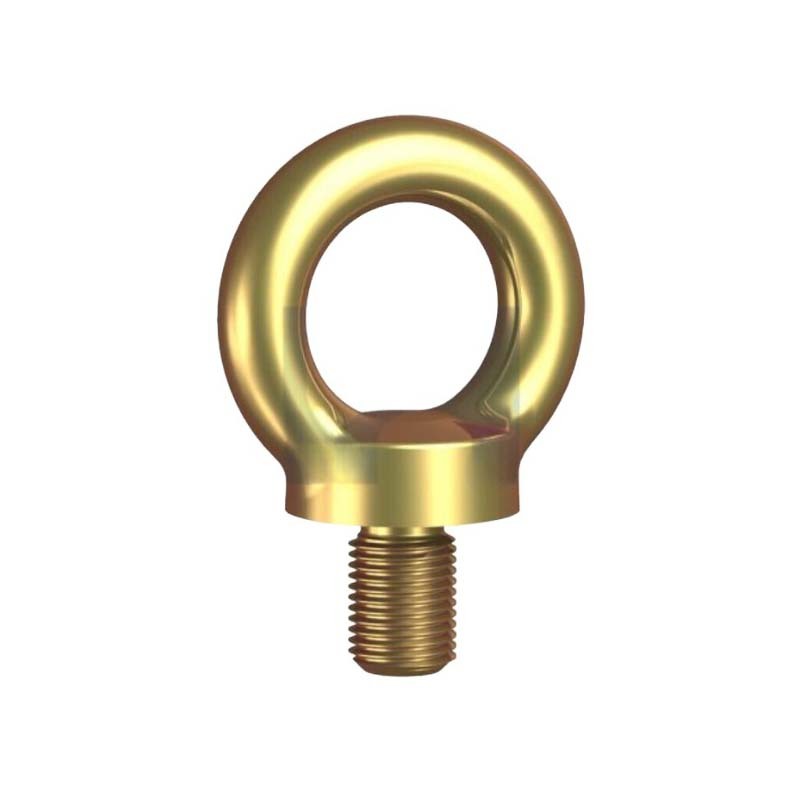

Lifting Eye Bolt DIN 580 - Zinc Yellow Passivate

  • DIN 580.
  • Grade C15E.
  • Zinc Yellow Passivate.
  • Eye bolt approved and certified for lifting.
  • Can be used in axial or angular loading.

Application

  • Connection point for anchoring, rigging, pulling, lifting, or hoisting.
  • Can be used with ropes, cables, shackles, and hooks.
  • Threaded onto steel equipment, machine, and structures.
  • Bolted through steel or timber profiles and secured with a nut.

Features

  • Approved for lifting.
  • Stamped with working load for axial loading.

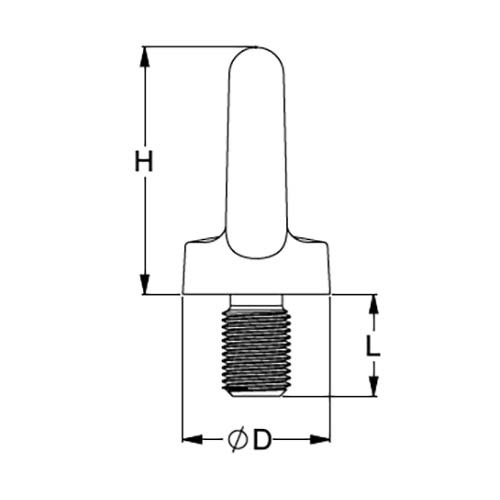

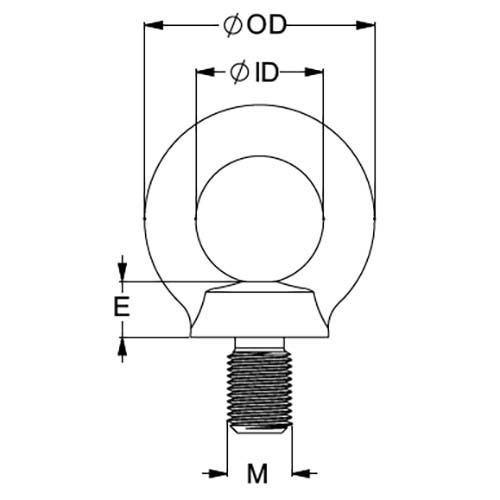

Specifications

  • AIMS SKU A0152734
  • Size M10
  • Height H (mm) 45
  • Length L (mm) 17
  • Collar Height E (mm) 8
  • Inside Eye Diameter Ø ID (mm) 25
  • Outside Eye Diameter Ø OD (mm) 45
  • Collar Diameter Ø D (mm) 25
  • Type Eye Bolt
  • Finish Zinc Yellow Passivate
  • Grade C15E
SKU: A0152734

Lifting Eye Bolt DIN 580 M10 Zinc Yellow Passivate - Pack of 50

Lifting Eye Bolt DIN 580 - Zinc Yellow Passivate

$107.50
