Description

*** JTEKT (Formerly Koyo Brand) ***

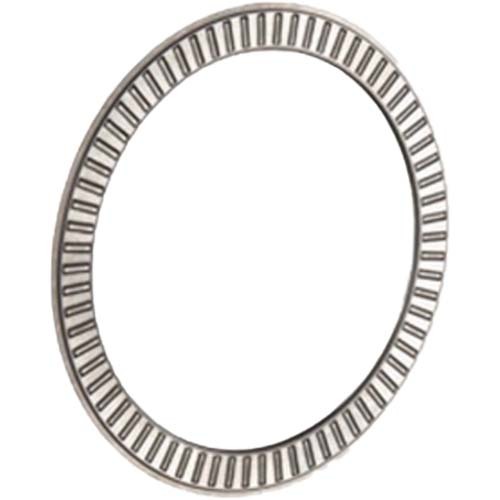

Thrust Needle Roller - Cage & Roller Assembly (NTA)

  • Thrust needle roller and cage assembly with inch nominal dimensions using needle rollers of the smallest practical diameter.

About Thrust Needle Roller And Cage Assemblies, Thrust Washer

  • Dimensions for bore and O.D. of thrust assemblies and washers are nominal.
  • Thrust washers burnished at least one - quarter of bore area (remainder is rough breakaway finish).
  • O.D. finish of washers will be as blanked.

About Mounting Tolerances Thrust Needle Roller And Cage Assembly

  • On NTA inch type thrust needle roller and cage assemblies, the cage bore has a larger contact area and a closer tolerance than outer diameter.
  • Therefore, bore piloting is preferred for these assemblies.
  • To reduce wear, it is suggested that the piloting surface for the cage be hardened to an equivalent of at least 55 HRC.
  • Where design requirements prevent bore piloting, the NTA thrust needle roller and cage assemblies may be piloted on the outer diameters.
  • It should be noted that the "diameter to clear washer O.D." given in the bearing tables is not suitable for outer diameter piloting.
  • For such cases, suitable O.D. piloting dimensions should be determined in consultation with your representative the engineering section of this catalog.

Specifications

  • AIMS SKU A0157540
  • Brand Koyo
  • Model Number NTA-6074/KOYO
  • Width (inch) 1/8
  • Outside Diameter (inch) 4 5/8
  • Shaft Diameter (in) 3 3/4

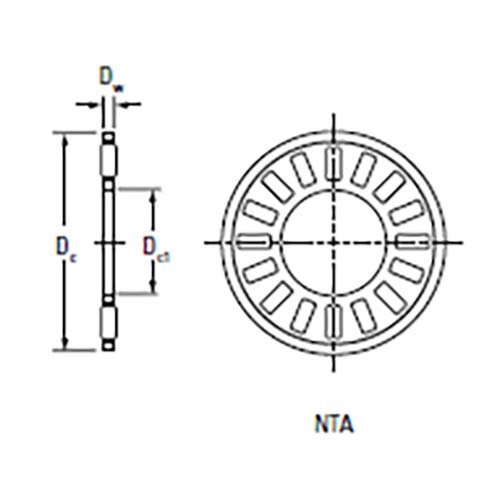

  • dc (mm) 117.48
  • Load Rating Dynamic C (kn) 56.05
  • Load Rating Dynamic C (lbf) 12600
  • Dc1 (mm) 95.25
  • Dw (mm) 3.175
  • Eb (mm) 98.04
  • Ea (mm) 113.28
  • Assembly Designation NTA-6074
  • Load Rating Static Co (kn) 344.3
  • Speed Rating Min-1 3500
  • Eb (in) 3.86
  • Ea (in) 4.46
  • Load Rating Static Co (lbf) 77400
  • Type Thrust Needle Roller Cage
SKU: A0157540

Koyo/JTEKT Thrust Needle Roller - Cage & Roller Assembly 3-3/4 x 4-5/8 x 1/8"

Thrust Needle Roller - Cage & Roller Assembly (NTA)

$216.40
