Specifications
- AIMS SKU A0157273
- Brand Koyo
- Model Number B-1416/KOYO
- Outside Diameter 1
- Width (in) 1 1/8

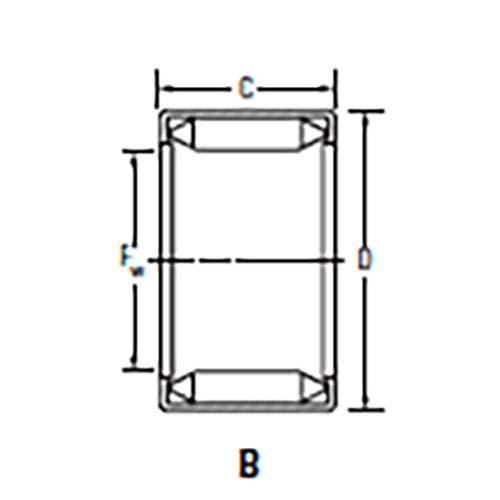

- C (+0/+0.000-0.3/-0.012) in 1.125
- C (+0/+0.000-0.3/-0.012) mm 25.4
- Load Rating Static C0 (lbf) 7100
- Load Rating Dynamic C (lbf) 0.09
- X Max (in) 7/8 in
- Fw (in) 0.043
- Load Rating Static C0 (kn) 64.9
- Load Rating Dynamic C (kn) 31.6
- X Max (mm) 2.29
- D (in) 0.875
- Fw (mm) 22.225
- Bore Diameter 1 in
- Inside Diameter (in) 1
- Width 1 1/8 in
- Outside Diameter (in) 7/8
- D (mm) 28.575

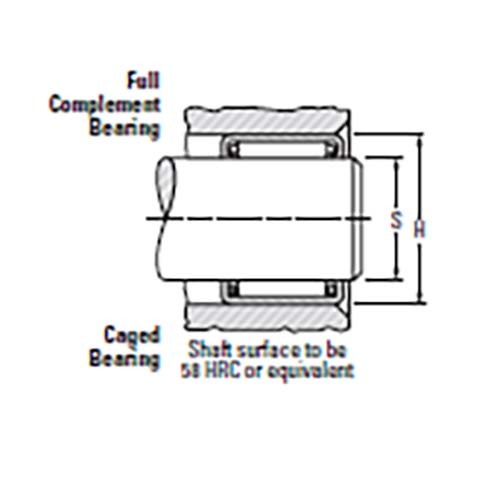

- Shaft Diameter (mm) 14600
- Type Needle Roller Bearing
SKU: A0157273

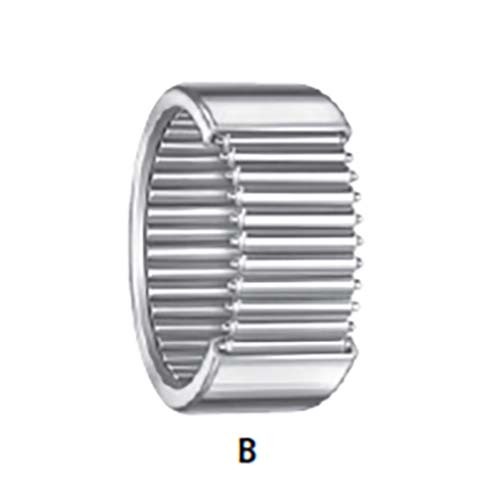

Koyo/JTEKT Shell Type Needle Roller Full Bearing Comp. 7/8 x 1-1/8 x 1" (IR-1016)
Shell Type Needle Roller Bearing Full Complement (B)
$33.51
