Description

*** JTEKT (Formerly Koyo Brand) ***

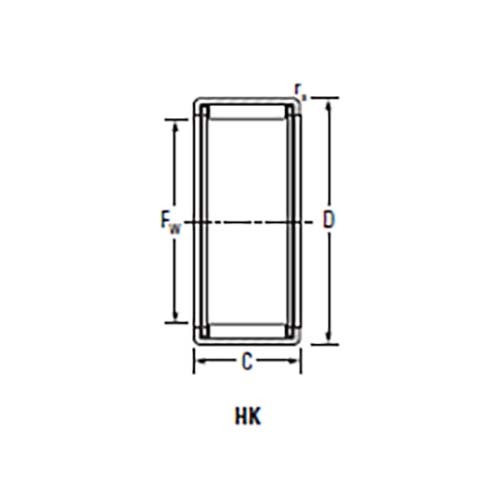

Shell Type Needle Roller Bearing (HK)

  • HK, drawn cup bearing, caged, open ends.

About Drawn Cup Needle Roller Bearing

  • Drawn cup needle roller bearings support radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers.
  • The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space.
  • Drawn cup bearings are easily installed with a press fit in the housing.

Features

  • Available in two basic designs: full complement and caged.

Benefits

  • Full complement bearings handle high radial load-carrying capability.
  • Caged bearings provide high speed and maximum lubricant-retention capability.

Specifications

  • AIMS SKU A0157212
  • Brand Koyo
  • Model Number HK3016/KOYO
  • Outside Diameter 37 mm
  • Width (mm) 16
  • Shaft Diameter (mm) 30
  • Inside Diameter (mm) 30
  • Outside Diameter (mm) 37
  • Width 16 mm
  • Bore Diameter 30 mm
  • r min. 1
  • Fatigue Load Limit Cu (kN) 4.2
  • Basic Load Rating Radial (kn) Cr 16.8
  • Basic Load Rating Radial (kn) C0r 27.3
  • Limiting Speed Grease Lub. 7000
  • Limiting Speed Grease Oil Lub. 11000
  • Type Needle Roller Bearing
SKU: A0157212 On Sale

Koyo/JTEKT Shell Type Needle Roller Bearing 30 x 37 x 16mm (JR25X30X17)

Shell Type Needle Roller Bearing (HK)

$16.86
$19.83
