KCP 1110H-CA T10 Horizontal Cover Assembly Taper Grid Coupling

Description

*** Cover Only ****

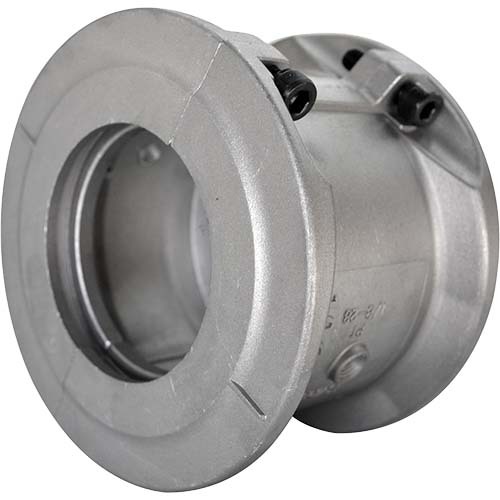

Horizontal Split Aluminum Cover Taper Grid Coupling

Type H cover, horizontal split aluminum cover.
Best choice for limited spaces.
Allows easy access to the grid spring.
Suitable for reversing applications.
Lightweight, die-cast aluminum grid cover.

About KCP Taper Grid Coupling

Taper Grid Couplings are recognizable due to their unique steel flexible grid running through the tapered hubs.
The benefits of the Grid Coupling are reduced vibration and shock loads.
The compact size of shaft-to-shaft couplings.
Handle torque capacity due to high strength hardened alloy steel construction
Deflect torsionally for normal shock or vibratory loads.
Capacity for misalignment without producing the detrimental side loads.
Designed with a trapezoidal cross-section and tempered for spring hardness.
Increase in strength rating and provide reserve strength for a longer part life.
Easy to fit the trapezoidal grids into the slots of the hub and short time of installation.
Free to rock, pivot, and float.

Specifications

AIMS SKU A0148851

Brand KCP

Model Number 1110H-CA

Bore Diameter Min (mm) 41

Lube Wt (kg) 0.51

Cplg Wt (kg) 54

Gap Max (mm) 9.5

Gap Normal (mm) 4.5

Gap Min (mm) 1.5

Dimension E (mm) 161.5

Dimension D (mm) 160.3

Dimension C (mm) 127

Size 1110H

Bore Diameter Max (mm) 117

Basic Torque (kg-cm) 86411

Hp Per 100 rpm 121

Cover Profile Horizontal

Max. Speed (rpm) 2250

Dimension B (mm) 258.5

Dimension A (mm) 270

Type Cover Taper Grid Coupling
