KCM Leaf Chain BL Series

Leaf chain also called a balance chain, features a simple steel structure consisting of plates and pins. This chain is used for load lifting and balancing.

• BL type used for heavy loading
• Available in different chain numbers

Operating Notes for Leaf Chains

1. Lubricate leaf chain periodically to avoid rotation of pin and reduce wear for extended service life.

• Recommended oil: SAE30 - SAE40
• Lubrication intervals: Determined to keep lubricant left on sliding portion between the pin and inner link plate.
• Lubrication method: Lubrication into space between link plates when the chain is loosened.

2. Avoid the use of chains in a corrosive environment.

3. Measure chain length periodically to check for wear and elongation. If elongation reaches its limit (3%), immediately replace the chain.

About KCM

KCM is an exclusive roller chain manufacturer certified by ISO 9001 (International Quality Management and Assurance Standard). Using state-of-the-art manufacturing and quality assurance technology. KCM strives to maintain its world-recognized quality products. KCM roller drives are used in a broad range of industries to transmit and drives various equipment.

Each box contains 10 Foot of Chain. Additional links may be purchased separately if required.

AIMS Industrial Supplies is an authorised roller chain supplier in Australia.

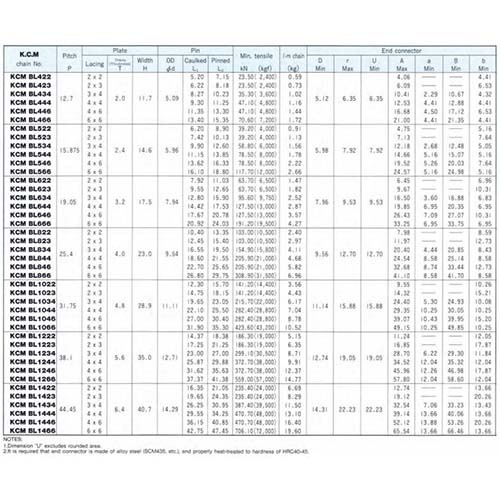

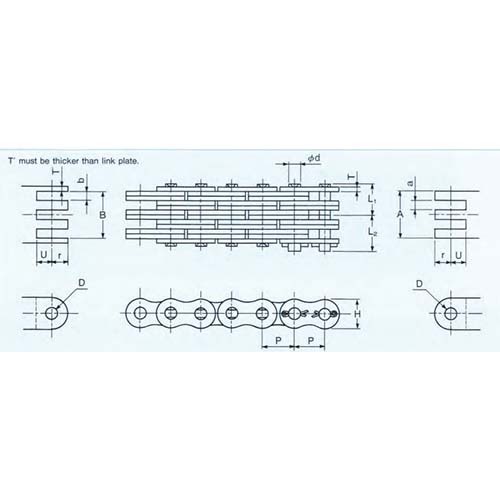

If you need assistance in selecting the right chain, please refer to the dimensions or contact our office.
