Specifications

AIMS SKU A0067132
Brand KCM
Model Number 50-2/KCM
Chain Number 50

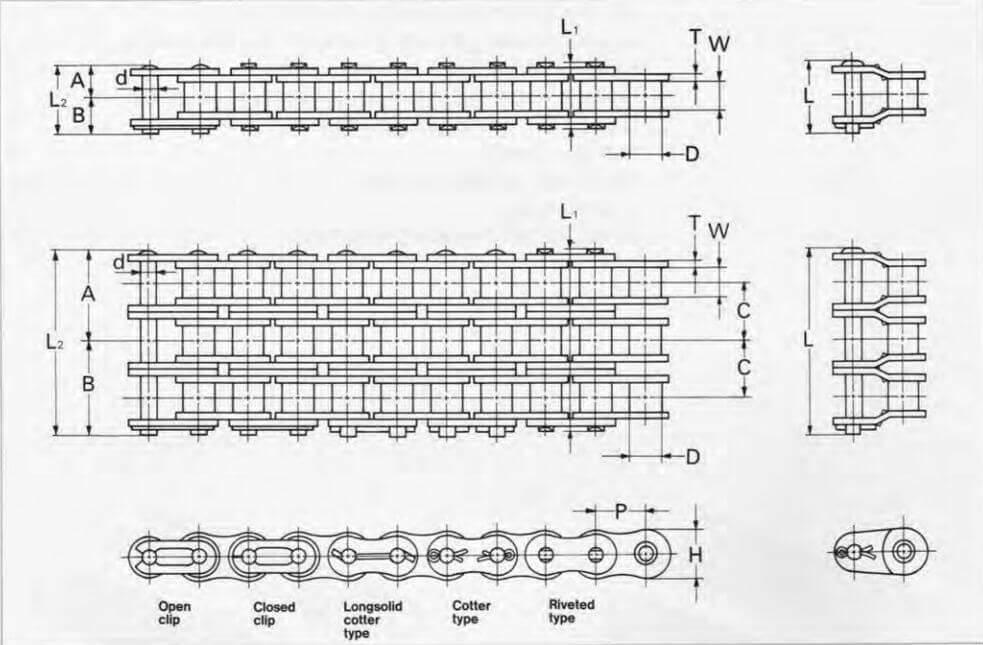

Pitch (inch) 5/8
Pitch (P) 15.875 mm
Width Between Inner Plates (W) 9.53 mm
Roller Diameter (D) 10.16 mm
Pin Diameter (D) 5.09 mm
Pin A 19.2
Pin B 20
Link Plate Height (H) 14.6 mm
JIS Tensile Strength, kN (kgf) 43.6(4,446)
Average Tensile Strength, kN (kgf) 59.8 (6,100)
Maximum Allowable Load kN (kgf) 10.79 (1,100)
Approximate Weight 2.01 kg/m
Chain Strands 2 (Duplex)
Number of Chain Links 192
Thickness (T) 2 mm
• System of Measurement American (ASA)
• Material Steel
• Strand Duplex
