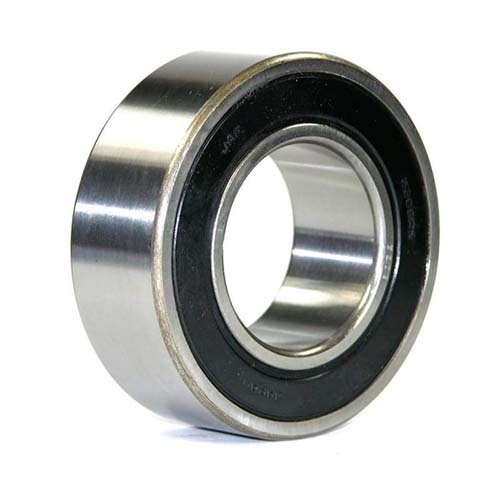

JAF 5303-2RS Angular Contact Ball Bearing 2RS Metric 17 x 47 x 22.2mm

Description

Angular Contact Ball Bearing 2RS (with Seals) Metric

Metric.
2RS (with seals).

All About Angular Contact Ball Bearings

Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

AIMS SKU A0156773

Brand JAF

Model Number 5303-2RS/JAF

Bore Diameter (mm) 17

Width (mm) 22.2

Outer Diameter (mm) 47

Limiting Speed (r.p.m) 9000

Load Rating (kgf) Cr 1900

Load Rating (kgf) Cor 1250

Type Angular Contact Bearings
Series 5200
