Description

Angular Contact Ball Bearing 2RS (with Seals) Metric

  • Metric.
  • 2RS (with seals).

All About Angular Contact Ball Bearings

  • Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
  • Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

  • AIMS SKU A0156770
  • Brand JAF
  • Model Number 5210-2RS/JAF
  • Bore Diameter (mm) 50
  • Width (mm) 30.2
  • Outer Diameter (mm) 90
  • Limiting Speed (r.p.m) 4100
  • Load Rating (kgf) Cr 4300
  • Load Rating (kgf) Cor 3800
  • Type Angular Contact Bearings
  • Series 5200
SKU: A0156770 On Sale

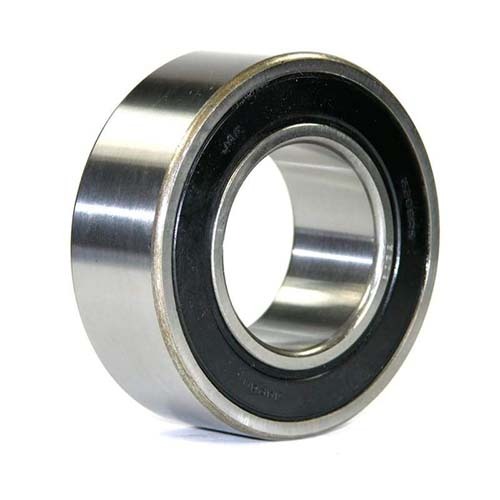

JAF 5210-2RS Angular Contact Ball Bearing 2RS Metric 50 x 90 x 30.2mm

Angular Contact Ball Bearing 2RS (with Seals) Metric

$150.20
$200.27
