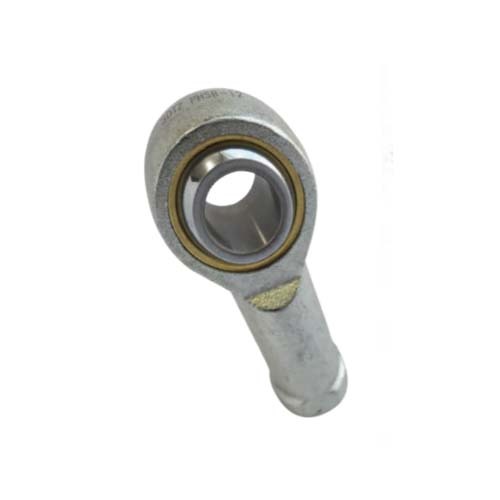

Imperial Rod End Female Right Hand

  • Female rod end.
  • Right hand.
  • Inch series PILLOBALL Rod Ends Insert Type With Female Thread.

About Lubrication Type PILLOBALL Rod Ends Insert Type PHSB

  • This type has superior anti-wear and anti-corrosion properties as well as high rigidity.
  • It consists of a spherical inner ring of which the spherical surface is chromium-plated after heat treatment and grinding, a body with zinc chromate treated outer surface, and an inserted bushing of a special copper alloy having superior run-in properties.

About Pilloball Structure and Features

  • PILLOBALLs are compact self-aligning spherical bushings that can support a large radial load and a bi-directional axial load at the same time.
  • These bushings are classified by sliding surface types, namely, insert type, die-cast type, and maintenance-free type.
  • In the insert type, a spherical inner ring makes contact with the special copper alloy bushing with superior run-in properties.
  • In the die-cast type, a spherical inner ring makes direct contact with the bore surface of the body of a special zinc die-cast alloy.
  • In the maintenance-free type, a spherical inner ring makes contact with the special PTFE liner of the maintenance-free type.
  • Thus, a smooth rotational and oscillatory motion can be achieved with superior anti-wear and loading properties in each type.
  • PILLOBALL Rod Ends have either a female thread in the body or a male thread on the body, and they can be easily assembled onto machines.
  • PILLOBALLs are used in control and link mechanisms in machine tools, textile machines, packaging machines, etc.
  • The maintenance-free type is especially suitable for loading in one direction and is the best choice for machines in which oil must be avoided such as food processing machines, or machines that cannot be re-lubricated.

Specifications

  • AIMS SKU A0154908
  • Brand IKO
  • Model Number PHSB-8/IKO

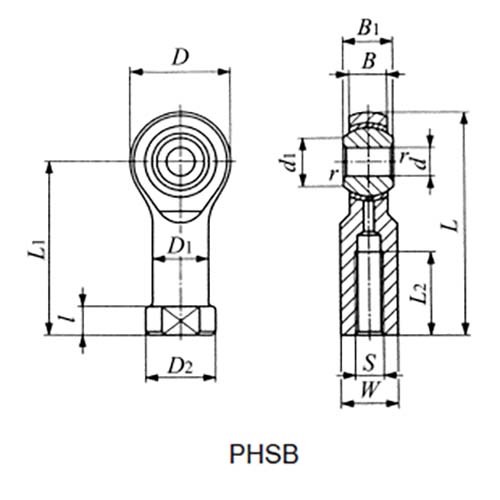

  • D2 (mm) 22.23
  • L1 (mm) 53.98
  • (d1) mm 17.73
  • Ball Diameter (in) 15/16
  • rs min1 (in) 0.02
  • D2 (in) 0.875
  • W (in) 0.75
  • L2 (in) 1.187
  • L1 (in) 2.125
  • L (in) 0.25
  • d1 (in) 0.75
  • Width of Inner Ring B1 (in) 0.625
  • B (in) 0.5
  • D (in) 1.312
  • Thread S Class 3b (in) 0.5
  • Ball Diameter (mm) 23.812
  • rs min1 (mm) 0.5
  • (Width of Inner Ring) B1 mm 15.88
  • Bore Diameter of Inner Ring (d) (mm) 12.7
  • Thread S Class 3b -20UNF
  • Bore Diameter of Inner Ring (d) (in) 1/2
  • Static Load Capacity Cs (N) 36200
  • Dynamic Load Capacity Cd (N) 14800
  • Mass (g) 132
  • L (mm) 6.35
  • w (mm) 19.05
  • D (mm) 33.32
  • b (mm) 12.7
  • d1 19.05 mm
  • L2 (mm) 30.15
  • Type Rod End
  • System of Measurement Imperial
  • Thread Type Female Right Hand
  • Style Female Rod End
