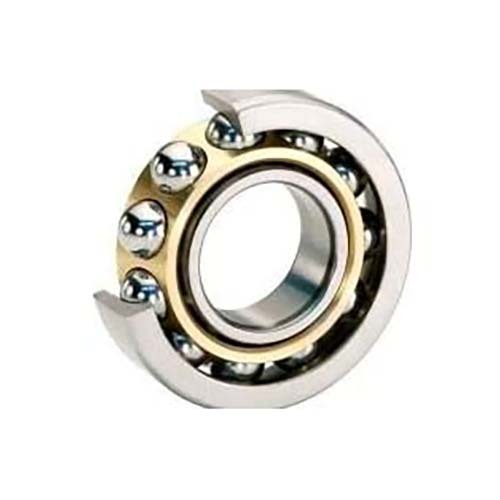

Angular Contact Ball Bearing 2Z (with Metal Shield)

  • 2Z (with metal shield).

All About Angular Contact Ball Bearings

  • Angular contact ball bearing supporting combined radial and bidirectional thrust loads ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity steel shields on both sides of the bearing to keep lubricant in and contaminants out.
  • Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where thermal expansion is not a factor.

Specifications

  • AIMS SKU A0156796
  • Brand IJK
  • Model Number 5204ZZ/IJK
  • Bore Diameter (mm) 20
  • Width (mm) 20.6
  • Outer Diameter (mm) 47
  • Chamfer R(min) 1
  • Balls Number 16
  • Ball Size 7.9
  • Load Rating Dynamic C(kgf)/(ibf) 2000
  • Load Rating Static C(kgf)/(ibf) 1270
  • Type Self Aligning Bearings
  • Series 5200
SKU: A0156796

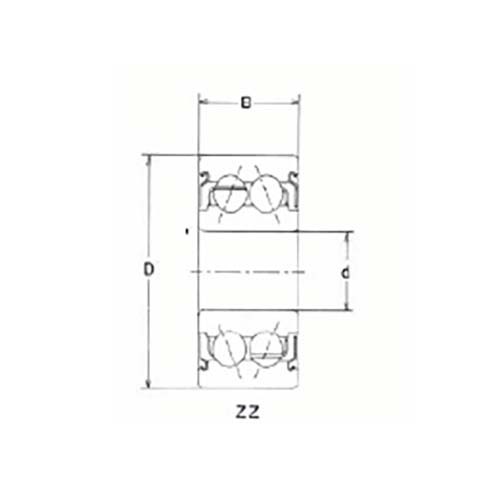

IJK 5204ZZ Angular Contact Ball Bearing 2Z Metric 2Z 20 x 47 x 20.6mm

Angular Contact Ball Bearing 2Z (with Metal Shield)

$65.48
